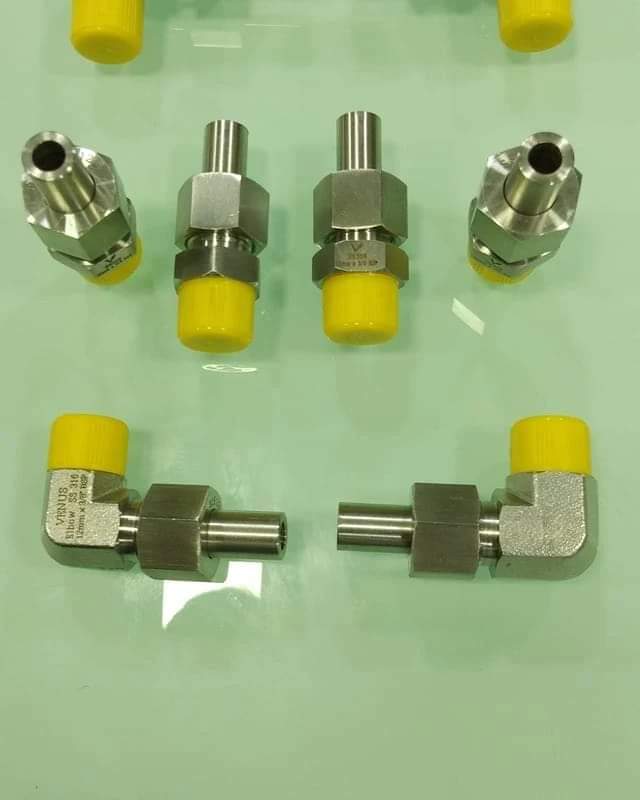

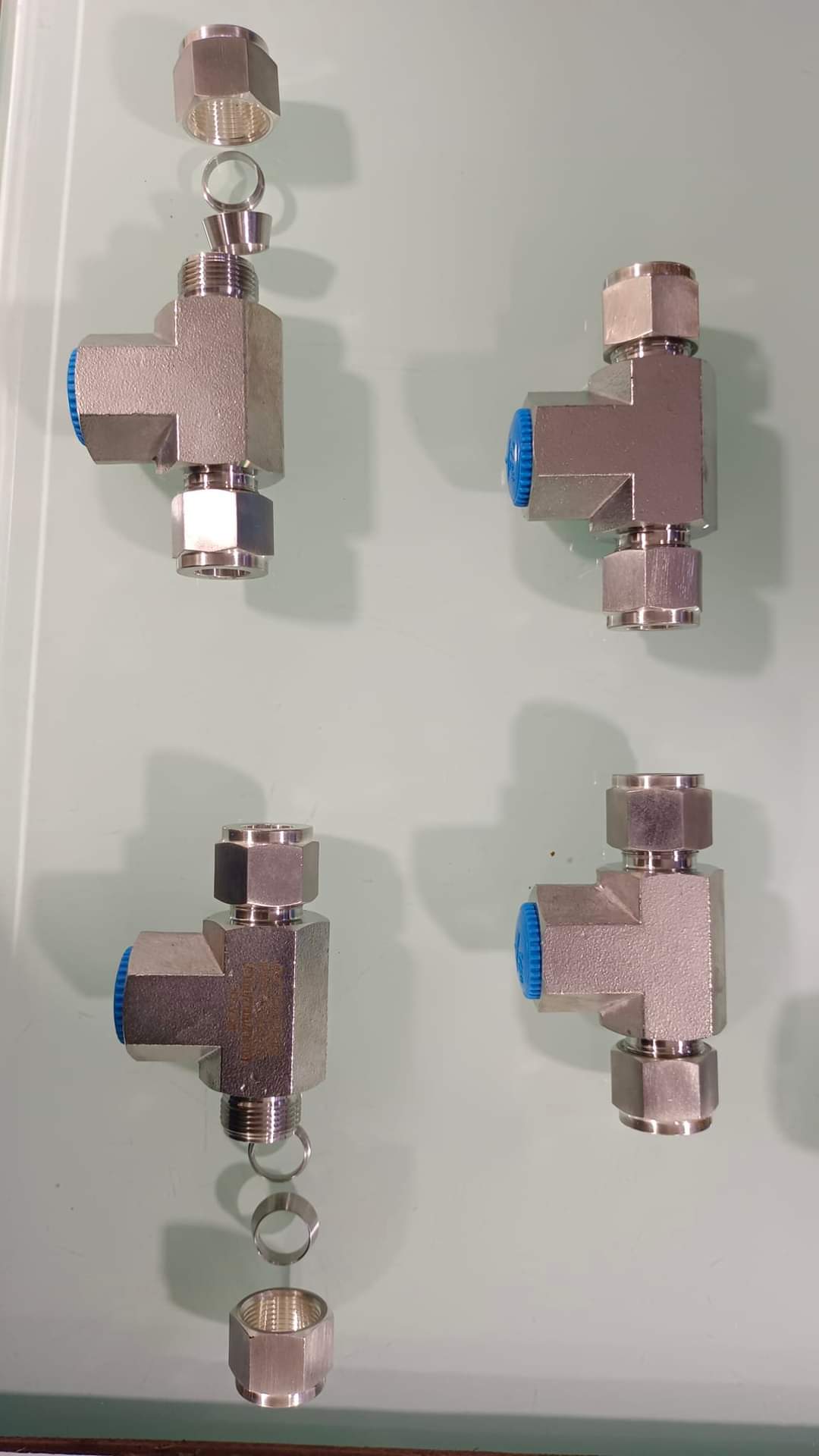

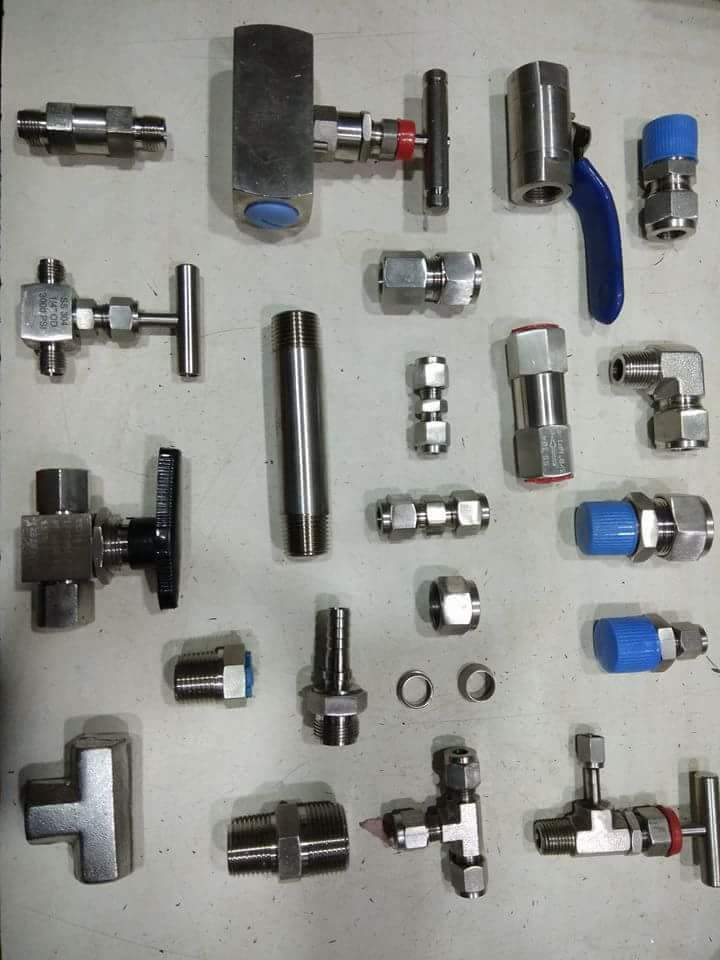

Jayshree Industrial Corporation provides heavy-duty forged pipe and tube fittings engineered for high-pressure instrumentation and process control networks. This product line includes a wide variety of configurations designed to minimize the total number of joints needed in a piping system. ## ⚙️ Technical Specifications## Sizing & End Connections * Tube & Instrumentation Sizes: 1/8” to 1” tube/pipe ends. * Process Line Sizes: 1/2” to 2 ½” ends. * Connection Varieties: NPT threads, BSP threads, Male/Female threaded, Butt weldable, Socket weldable, and Tube weldable ends. ## Pressure Ratings by Material * Carbon Steel & Brass: Up to 6,000 PSI (400 bar). * Stainless Steel, Monel & Alloy Steel: Up to 10,000 PSI (700 bar). ## 📋 Product Configuration Range## Straight Connectors & Unions * Union / Reducing Union: Joins two tubes of the same or different sizes. * Bulkhead Union: Mounts through panels or walls to secure tube lines. * Male Connector / Bulkhead Male Connector: Connects a tube line to a female pipe thread. * Female Connector / Bulkhead Female Connector: Connects a tube line to a male pipe thread. ## Branching & Directional Fittings * Union Tee / Union Cross: Splits or combines flow into three or four tube directions. * Elbow Union / Female Elbow / Male Elbow: Changes tube direction by 90 degrees with various end combinations. * Male Run Tee: A T-junction where the male pipe thread is on the straight run. * Male Branch Tee: A T-junction where the male pipe thread is on the branch angle. ## Adapters & Reducers * Male Adapter / Female Adapter: Transitions a tube fitting to a threaded pipe system. * Reducer / Bulkhead Reducer: Connects a smaller tube size directly into a larger tube fitting. ## Weld Transitions & Closures * Male Pipe Weld Connector: Seamlessly transitions from a welded pipe system to a tube system. * Tube Plug / Tube Cap: Seals off tube ends or fitting bodies safely. * Nut: Reusable compression component to secure ferrules onto the tube. If you are setting up a system, I can help you select the right weld versus thread configuration, check Monel material compatibility for corrosive gases, or review the installation torque requirements for 10,000 PSI systems. Which aspect would you like to explore next?
