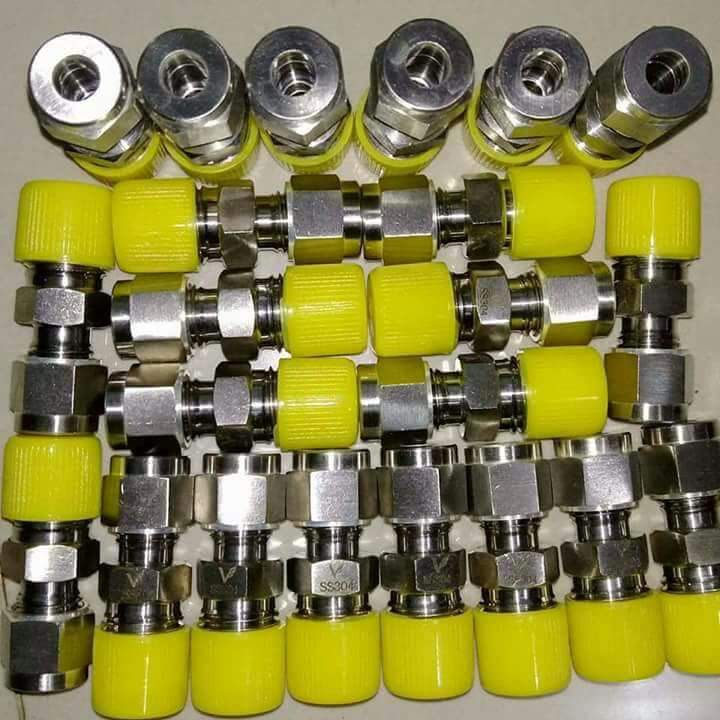

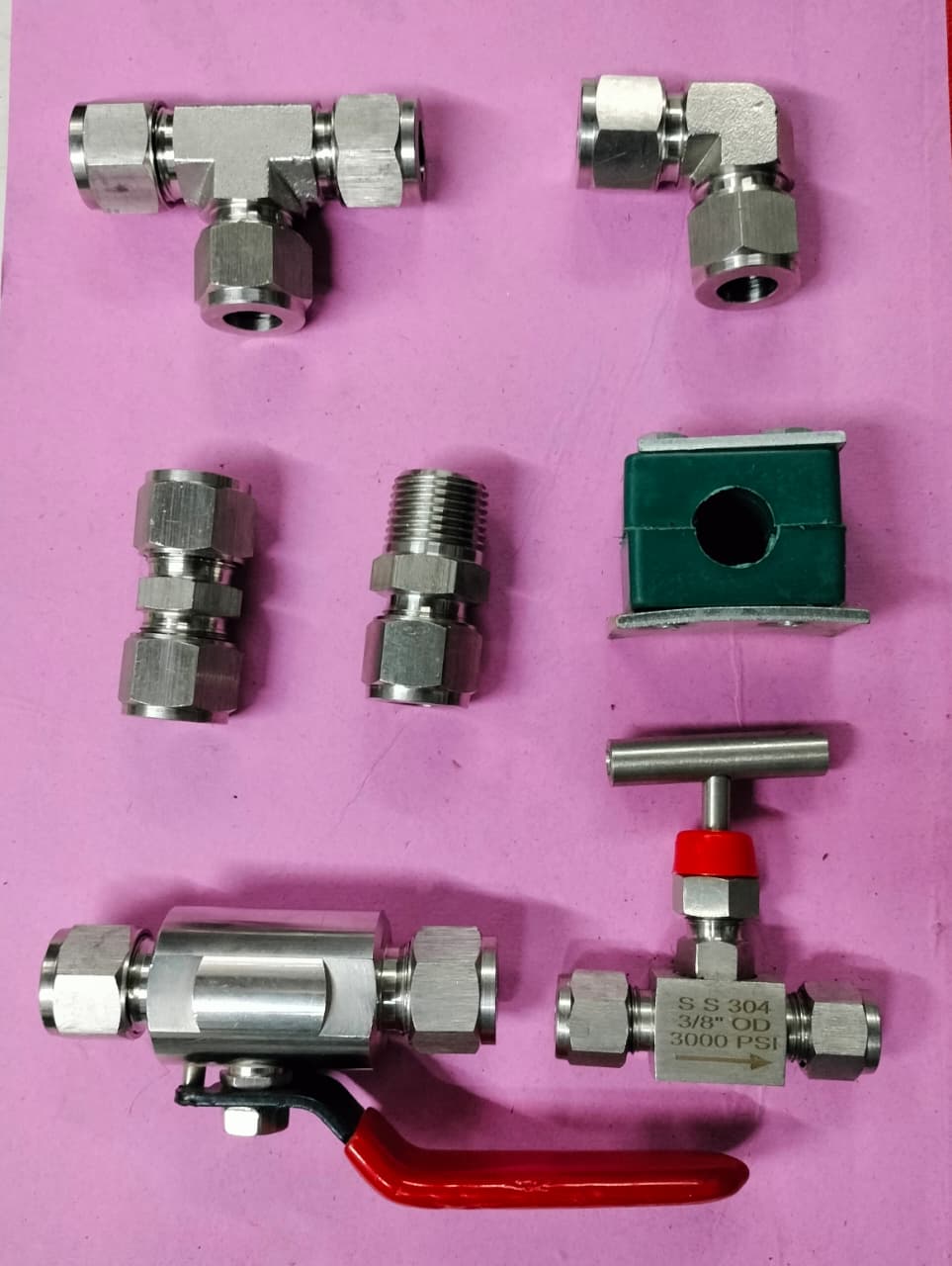

Jayshree Industrial Corporation manufactures high-pressure instrumentation tube fittings designed for leak-proof, torque-free connections in critical process control systems. These fittings eliminate hazardous leaks in both thin and thick-wall tubing applications.⚙️ Technical SpecificationsPressure Ratings: 1,500 PSI, 3,000 PSI, and up to 6,000 PSI (400 bar).Materials of Construction (M.O.C.): Stainless Steel (SS304, SS316), Brass, Carbon Steel, and Bronze.Imperial Sizes: 1/8” to 1” OD tube ends.Metric Sizes: 4mm to 25mm OD (standard range) and 6mm to 50mm OD (heavy-duty range).Thread Types: NPT, BSP, BSPT, and UNF.🛠️ Technology & Ferrule TypesDouble Ferrule (Twin Ferrule)Provides a dual-component mechanical grip.Ensures a secure, zero-leak joint.Ideal for high-pressure instrumentation lines.Single FerruleUses a single biting or progressive action.Available in stainless steel, carbon steel, and brass.Simplifies installation while maintaining system integrity.📋 Material Selection & ApplicationsStainless Steel (SS304/SS316): Excellent chemical and corrosion resistance for process lines.Carbon Steel: Heavy-duty, high-pressure hydraulic applications.Brass: Pneumatic systems, high-pressure water, and steam lines (Up to 4,000 PSI / 300 bar).Bronze: Marine environments offering long-life protection against seawater corrosion.📐 Product RangeConnectors: Male and Female Connectors.Unions: Standard Unions and Bulkhead Unions (for panel walls).Directional/Branching: Tees, Elbows, and Crosses.Closures: Tube Plugs and Tube Caps.Would you like to compare Double vs. Single ferrule installation steps, check chemical compatibility for your media, or get a weight chart for specific sizes?
