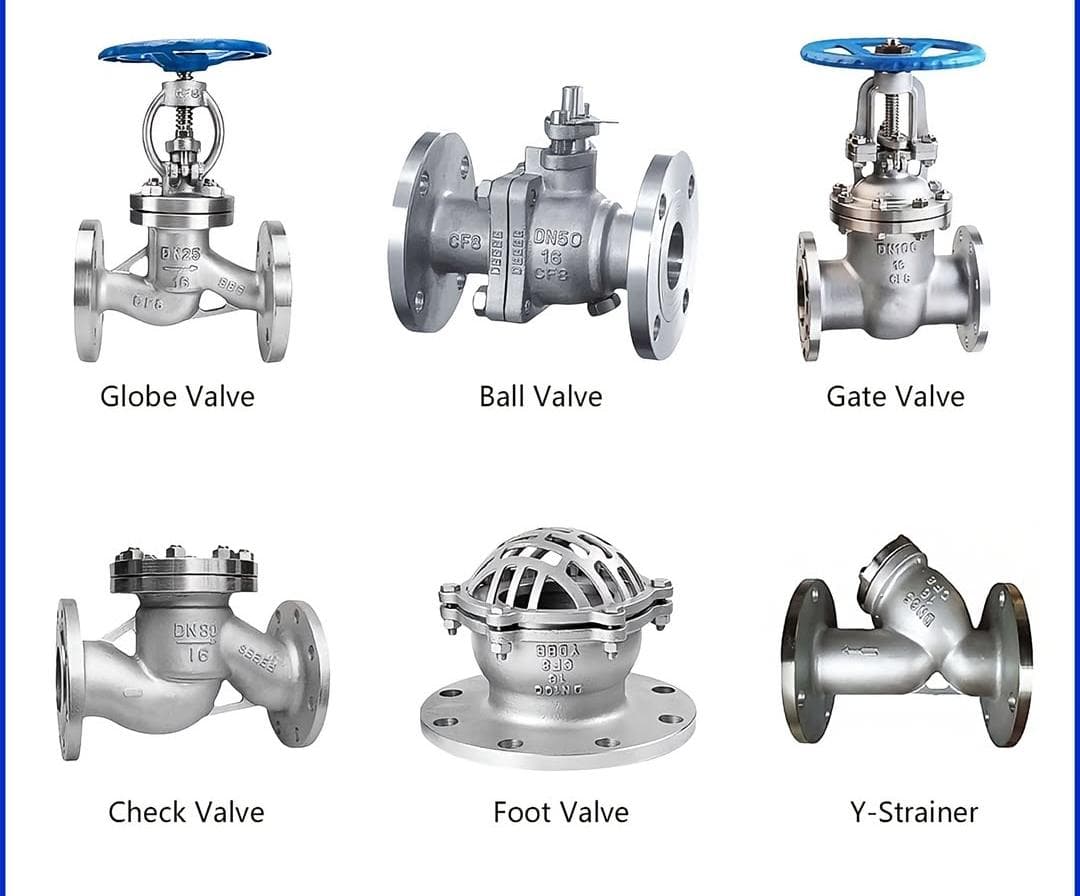

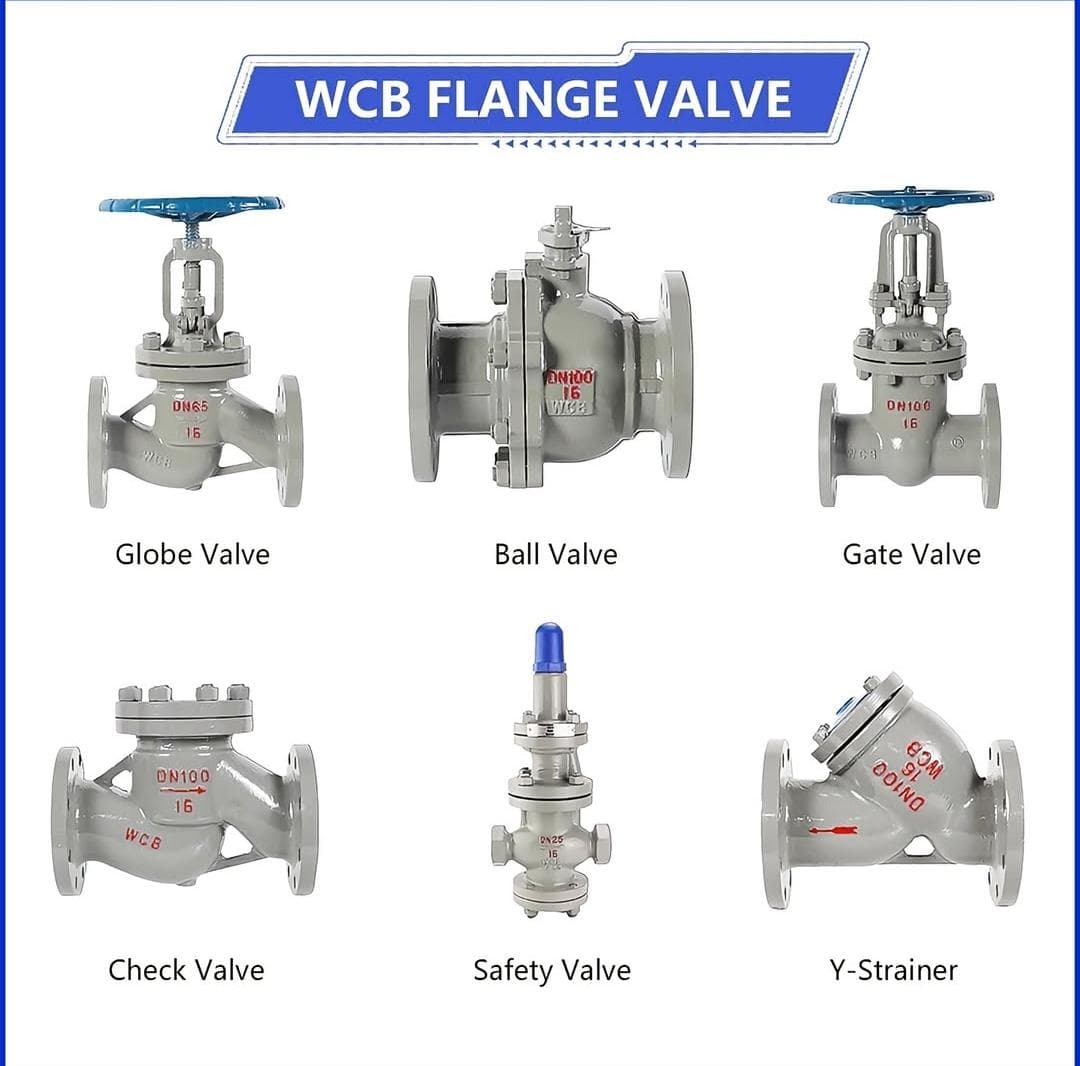

## WCB Cast Steel vs. Stainless Steel Flanged Valves The provided images showcase a core selection of heavy-duty industrial flanged valves and pipeline components, comparing WCB Carbon Steel (Image 1) and Stainless Steel / CF8 (Image 2). Both sets are rated for PN16 pressure (indicated by the “16” cast on the valve bodies) and are designed to bolt directly between pipeline flanges. ------------------------------ ## 1. Material Comparison & Identification * Image 1: WCB Flange Valves (Cast Carbon Steel) * Material Grade: ASTM A216 Grade WCB. * Visual Indicator: Distinct matte grey painted finish to protect the underlying carbon steel from atmospheric corrosion. * Best For: High-temperature utility lines, oil, gas, and non-corrosive steam/water applications. * Image 2: CF8 / Stainless Steel Flange Valves * Material Grade: ASTM A351 Grade CF8 (Cast 304 Stainless Steel). * Visual Indicator: Bright, unpainted, semi-polished metallic cast finish. * Best For: Highly corrosive chemical processing, food and beverage manufacturing, pharmaceuticals, and marine environments. ------------------------------ ## 2. Breakdown of Components Shown## 🛠️ Isolation & Flow Control Valves * Gate Valve: Features a multi-turn blue handwheel that lowers a solid wedge perpendicular to the flow path. It provides a full, unobstructed bore when fully open, making it perfect for on/off isolation with minimal pressure drop. * Globe Valve: Utilizes a multi-turn blue handwheel to lower a plug or disc into an internal S-shaped seat chamber. This design is engineered specifically for throttling and fine flow regulation, though it introduces a higher pressure drop. * Ball Valve: A quarter-turn valve (actuated by a top lever stem or gear) featuring an internal spherical ball with a bored hole. It offers rapid quarter-turn isolation and a tight bubble-tight seal. ## 🛡️ Protection & Process Components * Check Valve (Swing Style): A self-actuating safety valve with a top bolted bonnet. It utilizes an internal swinging disc that automatically opens with forward fluid velocity and slams shut under gravity or backpressure to prevent reverse flow. * Y-Strainer: A mechanical filtration component featuring a slanted chamber. It houses a removable perforated metal mesh basket that intercepts solid debris to shield downstream valves, pumps, and instrumentation from damage. * Safety Valve (Image 1 Only): A spring-loaded overpressure safety device with an adjustable blue protective cap. It automatically cracks open at a calibrated pressure threshold to relieve dangerous system spikes. * Foot Valve (Image 2 Only): A specialized check valve paired with an integrated dome-shaped suction strainer. It is installed at the lowest intake point of a pump suction line to filter coarse debris and maintain prime by preventing fluid drain-back. ------------------------------ Would you like to look up the exact flange drilling dimensions (such as bolt circle diameters) for these PN16 sizes (DN25, DN50, DN65, or DN100), or check their maximum temperature-pressure rating tables?
