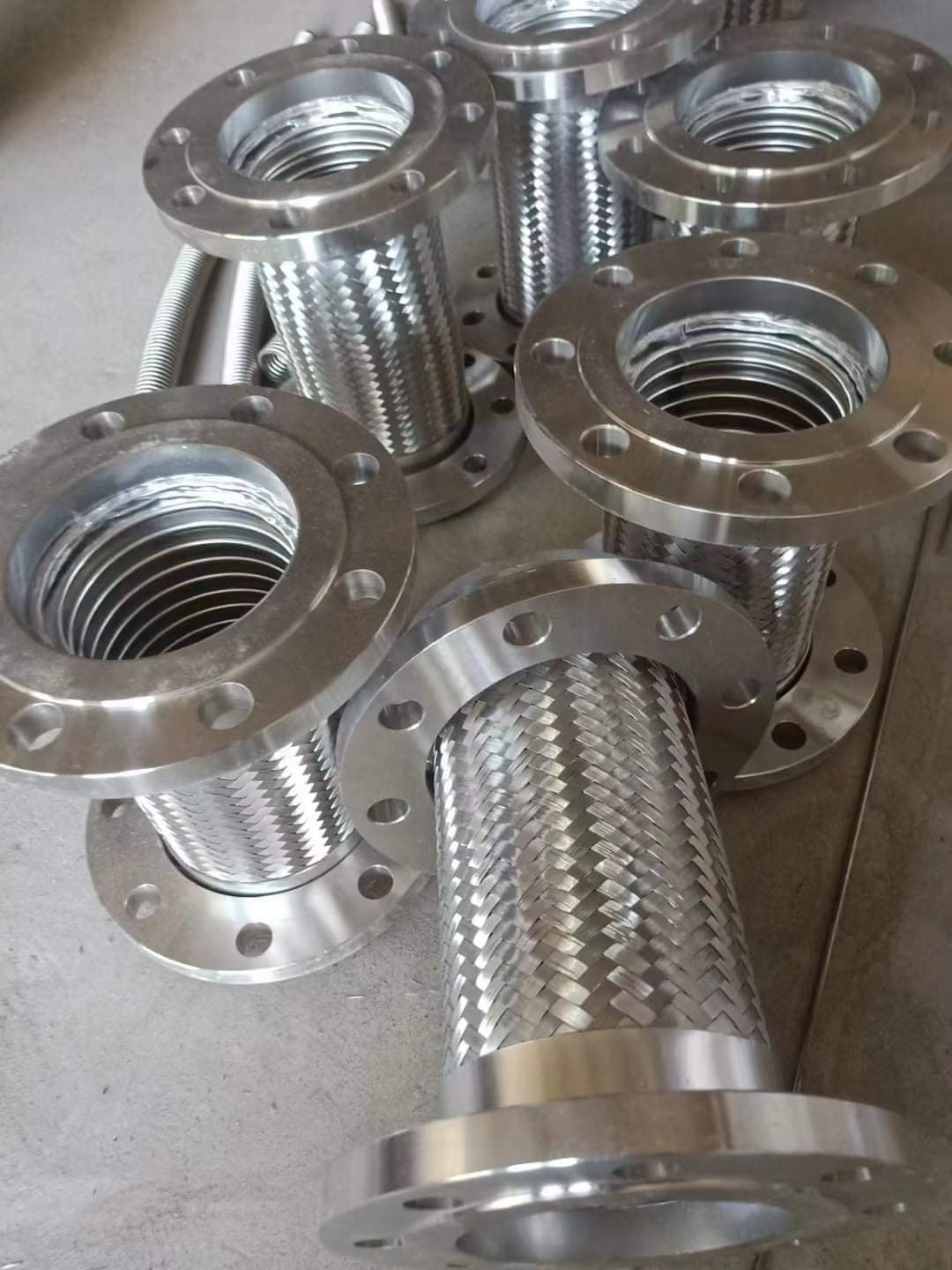

Stainless Steel Braided Flexible Hose Assemblies with Fixed Flanged Ends (commonly known as flanged metallic bellows, pump connectors, or vibration eliminators).🏗️ Design & ConstructionInner Corrugated Bellows: The core consists of a flexible, ribbed corrugated stainless steel tube. This handles thermal expansion and absorbs system movement.Stainless Steel Wire Braiding: The outer woven wire mesh tightly jackets the inner tube. It prevents the internal core from elongating or bursting under high operating pressures.Welded Flanged Ends: Both ends are fitted with heavy, multi-bolt hole flanges. These allow the flexible line to bolt directly onto rigid pipe networks, valves, or machinery headers.⚙️ Primary FunctionsVibration Isolation: They are installed right next to heavy machinery (like pumps, chillers, or compressors) to stop mechanical vibrations from shaking downstream pipelines apart.Thermal Expansion: They bend slightly to accommodate the expansion and contraction of pipes caused by shifting fluid temperatures.Alignment Correction: They bridge minor offsets or installation misalignments where two rigid pipes do not line up perfectly.💡 Common ApplicationsPump Suction & Discharge Lines: Protecting pumps from stress caused by pipeline load weight.HVAC Systems: Chilled and hot water piping insulation.Industrial Plants: Routing steam, gases, and oils through vibrating structural corridors.If you are incorporating these into your system layout, let me know:What operating fluid or gas will pass through these connectors?What flange standard do you need to match (e.g., ANSI Class 150/300 or PN10/PN16)?What is the total face-to-face length required for your installation gap?I can provide the maximum pressure and temperature ratings to ensure your system operates safely!
