Home> Products> zero leakage compression connections

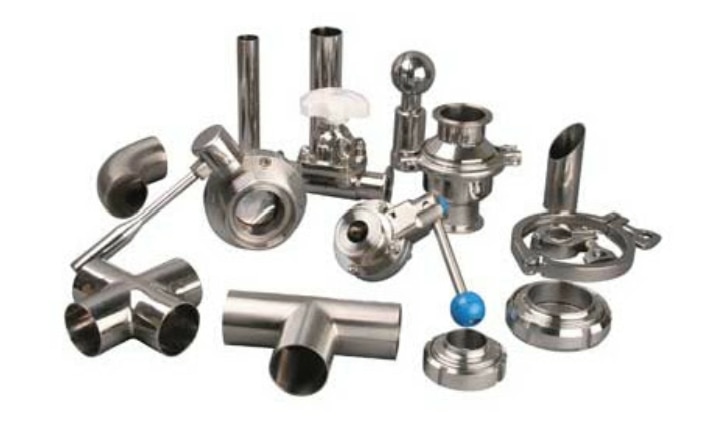

{ "products": [ { "_id": "6a101aa51c564d4c4a525ec3", "fptag": "JAYSHREEINDUSTRIALCORPORATION", "merchantname": null, "customwidgets": null, "externalsourceid": null, "name": "Dairy and sanitary fittings", "description": "Dairy and sanitary fittings are highly polished, crevice-free components engineered to meet strict hygiene standards. They prevent bacterial growth, withstand clean-in-place (CIP) sterilization, and provide leak-proof connections across high-purity industries. [1] \n## ⚙️ Technical Specifications\n\n* Size Range: 1/2“ O.D. to 10” O.D. (Outside Diameter).\n* Design Standards: DIN, Tri-Clover (Tri-Clamp), IDF, SMS, RJT, BSP, and NPT.\n* Material Grades: Stainless Steel ASTM A403 WP304, 304L, 304H, 310, 316, 316L, 321, 321H, and 347.\n* Target Industries: Dairy, breweries, food & beverage, soft drinks, pharmaceuticals, cosmetics, distilleries, and sterile chemical processing. [2, 3] \n\n------------------------------\n## 📋 Sanitary Component Classification## 1. Tri-Clover & Quick-Disconnect Union Components\n\n* Sanitary Ferrules: Flanged sleeves welded or expanded onto tube ends to create a hygienic mating surface.\n* Clamp & Gasket: A heavy-duty mechanical clamp joins two ferrules together, squeezing an elastomeric gasket between them to ensure a zero-leak seal.\n* Sanitary Adapters & Hose Ferrules: Transitions smooth-bore sanitary tubing safely over to threaded systems or flexible hoses.\n\n## 2. Directional, Branching & Flow Manipulation Fittings\n\n* 90° & 45° Clamp/Welded/Threaded Elbows: Smoothly reroute fluid lines without dead corners where product could stagnate.\n* Sanitary Tees, Crosses, & Laterals: Form multi-directional junctions for distribution.\n* Sanitary True Y / Sanitary U Bends: Specialized splits and loops designed to maintain laminar flow profiles and cleanability.\n* Sanitary Reducers: Concentric or eccentric fittings that transition between mismatched tube diameters.\n\n## 3. Sanitary Valves & Flow Control\n\n* Butterfly Valves (Welded, Clamped, Threaded, 3-Piece, Flanged): Space-saving quarter-turn valves used for high-frequency isolation.\n* Sanitary Ball Valves (2-Piece & 3-Piece Clamped): Provide a full, unrestricted bore for viscous or high-flow media.\n* Diaphragm & Zero Dead Leg Valves: Top-tier isolation components that prevent stagnant media zones, highly critical in pharmaceutical loops.\n* Plug (Cock) Valve & Non-Return Valve: Respectively handle manual throttling or prevent system backflow.\n\n## 4. Inspection, System Cleaning & Closures\n\n* Sight Glass (Butt Weld & Clamp End): Inline transparent viewports to monitor product clarity, color, and flow conditions.\n* Spray-Cleaning Ball: Fixed or rotary fluid devices mounted inside tanks for automated CIP tank washing.\n* Conical Strainer: Traps particulate matter before it can damage downstream pumps or valves.\n* Sanitary End Caps & Thermometer Caps: Securely seal off open lines or integrate temperature sensor probes into the flow stream.\n\n------------------------------\n## 🧴 Why Material Selection Matters (304L vs. 316L)\n\n* 304L Stainless Steel: Ideal for standard food, dairy, and beverage lines where corrosion risk is moderate.\n* 316L Stainless Steel: Crucial for high-acid environments (citrus, tomatoes), breweries, and pharmaceutical loops because it resists pitting from harsh CIP chemicals and chlorides.\n\nAre you sizing a system for a specific flow rate, or do you need to check the temperature rating for the gaskets (like EPDM, Silicone, or Viton)? Let me know how I can help you further.\n\n[1] [https://www.icfitting.com/](https://www.icfitting.com//en/sanitary-fittings)\n[2] [https://www.icfitting.com/](https://www.icfitting.com//dairy-union.html)\n[3] [https://www.icfitting.com/](https://www.icfitting.com//32-ferrules.html?CID=4_6)\n", "price": 410.0, "discountamount": 0.0, "currencycode": "INR", "priority": 1000000, "isfreeshipmentavailable": false, "shipmentduration": 1, "_keywords": null, "isarchived": false, "isavailable": true, "applicationid": null, "productindex": 288, "imageuri": "https://productimages.withfloats.com/actual/6a101aa78925fb8f8fb28ec1.png", "tileimageuri": "https://productimages.withfloats.com/tile/6a101aa78925fb8f8fb28ec1.png", "images": null, "totalqueries": 0, "gpid": null, "groupproductid": null, "createdon": "2026-05-22T08:58:13.829Z", "updatedon": "2026-05-22T08:58:13.829Z", "buyonlinelink": null, "producturl": "http://WWW.ICFITTING.COM/products/dairy-and-sanitary-fittings/288", "availableunits": -1.0, "iscodavailable": false, "isprepaidonlineavailable": false, "maxcodorders": 0, "maxprepaidonlineorders": 0, "uniquepaymenturl": null, "brandname": "Jayshree", "category": "Dairy and sanitary fittings", "tags": [ "Dairy and sanitary fittings Manufacturer IN AHMEDABAD", "Dairy and sanitary fittings Manufacturer gujarat", "Dairy and sanitary fittings Manufacturer in india" ], "variants": false, "keyspecification": null, "otherspecifications": null, "pickupaddressreferenceid": null, "paymenttype": "UniquePaymentUrl", "producttype": "products", "hsncode": null, "gstslab": 0.0, "isnotforsale": false }, { "_id": "6a100ea0ff67a1d1bd29de5f", "fptag": "JAYSHREEINDUSTRIALCORPORATION", "merchantname": null, "customwidgets": null, "externalsourceid": null, "name": "Tube Fittings", "description": "Jayshree Industrial Corporation manufactures high-pressure instrumentation tube fittings designed for leak-proof, torque-free connections in critical process control systems. These fittings eliminate hazardous leaks in both thin and thick-wall tubing applications.⚙️ Technical SpecificationsPressure Ratings: 1,500 PSI, 3,000 PSI, and up to 6,000 PSI (400 bar).Materials of Construction (M.O.C.): Stainless Steel (SS304, SS316), Brass, Carbon Steel, and Bronze.Imperial Sizes: 1/8” to 1” OD tube ends.Metric Sizes: 4mm to 25mm OD (standard range) and 6mm to 50mm OD (heavy-duty range).Thread Types: NPT, BSP, BSPT, and UNF.🛠️ Technology & Ferrule TypesDouble Ferrule (Twin Ferrule)Provides a dual-component mechanical grip.Ensures a secure, zero-leak joint.Ideal for high-pressure instrumentation lines.Single FerruleUses a single biting or progressive action.Available in stainless steel, carbon steel, and brass.Simplifies installation while maintaining system integrity.📋 Material Selection & ApplicationsStainless Steel (SS304/SS316): Excellent chemical and corrosion resistance for process lines.Carbon Steel: Heavy-duty, high-pressure hydraulic applications.Brass: Pneumatic systems, high-pressure water, and steam lines (Up to 4,000 PSI / 300 bar).Bronze: Marine environments offering long-life protection against seawater corrosion.📐 Product RangeConnectors: Male and Female Connectors.Unions: Standard Unions and Bulkhead Unions (for panel walls).Directional/Branching: Tees, Elbows, and Crosses.Closures: Tube Plugs and Tube Caps.Would you like to compare Double vs. Single ferrule installation steps, check chemical compatibility for your media, or get a weight chart for specific sizes?", "price": 140.0, "discountamount": 0.0, "currencycode": "INR", "priority": 1000000, "isfreeshipmentavailable": false, "shipmentduration": 1, "_keywords": null, "isarchived": false, "isavailable": true, "applicationid": null, "productindex": 285, "imageuri": "https://productimages.withfloats.com/actual/6a100ea26c7271fa3f2524a6.jpg", "tileimageuri": "https://productimages.withfloats.com/tile/6a100ea26c7271fa3f2524a6.jpg", "images": null, "totalqueries": 0, "gpid": null, "groupproductid": null, "createdon": "2026-05-22T08:06:56.299Z", "updatedon": "2026-05-22T08:06:56.299Z", "buyonlinelink": null, "producturl": "http://WWW.ICFITTING.COM//tube-fittings/285", "availableunits": -1.0, "iscodavailable": false, "isprepaidonlineavailable": false, "maxcodorders": 0, "maxprepaidonlineorders": 0, "uniquepaymenturl": null, "brandname": "Jayshree", "category": "Tube Fittings", "tags": [ "Tube Fittings Manufacturer In India", "Tube Fittings Manufacturer In Gujarat", "Tube Fittings Manufacturer IN AHMEDABAD" ], "variants": false, "keyspecification": null, "otherspecifications": null, "pickupaddressreferenceid": null, "paymenttype": "UniquePaymentUrl", "producttype": "products", "hsncode": null, "gstslab": 0.0, "isnotforsale": false }, { "_id": "6a0ecf9bce4c51179c1d0a3a", "fptag": "JAYSHREEINDUSTRIALCORPORATION", "merchantname": null, "customwidgets": null, "externalsourceid": null, "name": "Stainless Steel (SS) Braided Flexible Hose Pipes", "description": "Stainless Steel (SS) Braided Flexible Hose Pipes equipped with hygienic Tri-Clamp (TC) Ferrule Ends.⚙️ Main FeaturesBraided Outer Cover: The stainless steel wire braiding protects the internal core tube from expansion, mechanical damage, and high pressures.Hygienic End Connections: The smooth, flanged Tri-Clamp ends are designed for quick assembly using a gasket and a clamp, ensuring a leak-proof, zero-pocket seal.High Flexibility: These hoses absorb pipeline vibrations, correct thermal expansion misalignments, and handle curved installations where rigid pipe cannot go.💡 Common ApplicationsBecause of the sanitary Tri-Clamp connections, these flexible hoses are heavily used in high-purity industries:Food & Dairy Processing: Transferring milk, beverages, or edible fluids.Pharmaceuticals & Biotech: Safely routing sterile ingredients and medicine bases.Breweries & Distilleries: Connecting fermentation tanks and processing equipment.Would you like to know about their maximum pressure and temperature ratings, or do you need help determining the right gasket material (EPDM, Silicone, Viton, or PTFE) for your specific fluid", "price": 750.0, "discountamount": 0.0, "currencycode": "INR", "priority": 1000000, "isfreeshipmentavailable": false, "shipmentduration": 1, "_keywords": null, "isarchived": false, "isavailable": true, "applicationid": null, "productindex": 262, "imageuri": "https://productimages.withfloats.com/actual/6a0ecf9c160816c6642db434.jpg", "tileimageuri": "https://productimages.withfloats.com/tile/6a0ecf9c160816c6642db434.jpg", "images": null, "totalqueries": 0, "gpid": null, "groupproductid": null, "createdon": "2026-05-21T09:25:47.113Z", "updatedon": "2026-05-21T09:25:47.113Z", "buyonlinelink": null, "producturl": "http://WWW.ICFITTING.COM//stainless-steel-ss-braided-flexible-hose-pipes/262", "availableunits": -1.0, "iscodavailable": false, "isprepaidonlineavailable": false, "maxcodorders": 0, "maxprepaidonlineorders": 0, "uniquepaymenturl": null, "brandname": "Jayshree", "category": "Stainless Steel (SS) Braided Flexible Hose Pipes", "tags": [], "variants": false, "keyspecification": null, "otherspecifications": null, "pickupaddressreferenceid": null, "paymenttype": "UniquePaymentUrl", "producttype": "products", "hsncode": null, "gstslab": 0.0, "isnotforsale": false }, { "_id": "6a11a29c8421e30da6cea6aa", "fptag": "JAYSHREEINDUSTRIALCORPORATION", "merchantname": null, "customwidgets": null, "externalsourceid": null, "name": "Investment Casting (IC) fittings", "description": "Jayshree Industrial Corporation is a premier manufacturer, stockist, and supplier of industrial piping components, specializing in Investment Casting (IC) fittings. [1, 2] \nLocated in the industrial hub of Rakhial, Ahmedabad, Gujarat, India, the company delivers engineering solutions using high-grade Stainless Steel CF8 (SS304) and CF8M (SS316) materials. Their technical blog outlines the specifications, production techniques, and versatile applications of these robust components. [1, 2] \n------------------------------\n## 🛠️ Material Profiles: CF8 vs. CF8M\nInvestment casting (IC) allows for precise dimensional consistency, smooth interior walls, and reduced turbulence or fluid friction. [3] \n\n* CF8 (Cast 304 Stainless Steel): The industry standard for excellent general corrosion resistance. Ideally suited for dairy processing, food and beverage systems, and light-chemical piping grids.\n* CF8M (Cast 316 Stainless Steel): Enhanced with Molybdenum to resist pitting from chlorides, seawater, and aggressive acids. It is widely chosen for marine hardware, pharmaceutical processing, and petrochemical lines. [2, 3, 4] \n\n------------------------------\n## 📐 Catalog Directory & Specifications\nThe items displayed represent an industrial Screwed / Threaded IC Fitting portfolio designed for Class 150 high-durability setups: [5, 6] \n## 1. Directional Control & Branching\n\n* 90° & 45° Elbows / 90° Street Ells: Critical for modifying the fluid trajectory with smooth interior arcs to mitigate pressure drop.\n* Equal Tees & Crosses: 3-way and 4-way junctions used to split, combine, or route intersecting pipelines. [1, 5, 7] \n\n## 2. Line Joining & Adapters\n\n* Couplings & Bell Reducers: Female-threaded blocks designed to continue straight pipe lengths or seamlessly scale down line diameters.\n* Pipe Nipples / Hex Nipples: External male-threaded connectors with a central wrench pad used for rapid assembly or extensions.\n* Unions: Three-piece multi-component quick-release blocks enabling line disassembly for routine cleaning or maintenance without rotating the adjacent pipes. [1, 6, 7] \n\n## 3. Flow Termination & Reduction\n\n* Hex Plugs & Domed Caps: Threaded end stops utilized to seal off pipelines either temporarily or permanently.\n* Hex Bushings: Male-to-female reducing components that quickly transform port connections to accept smaller hardware sizes. [1, 6, 7] \n\n------------------------------\n## Technical Specification Overview\n\n| Feature / Standard [5, 6, 8] | Technical Requirement Details |\n|---|---|\n| Material Grade Compliance | ASTM A351[](https://www.astm.org/) / ASME SA351 Grade CF8 & CF8M |\n| Dimensional Standard | ANSI / ASME B16.3 |\n| Thread Profiles Available | NPT, BSP, or BSPT conforming to ANSI B2.1 |\n| Pressure Class Limits | Standard Class 150 lbs ( tested via water immersion pressure) |\n| Standard Sizing Range | $frac{1}{8}''$ to $4''$ or $6''$ Nominal Bore (NB) |\n\n------------------------------\n## 📍 Manufacturer Information\nTo review product drawings or explore customized dimensions from their manufacturing blog, reach out to the [Jayshree Industrial Corporation Official Portal](http://icfitting.com/): [1, 2] \n\n* 📍 Head Office & Works: A133, Suvan Business Park, Keval Kanta Road, Near Nagarwel Hanuman, Industrial Area, Rakhial, Ahmedabad, Gujarat 380023.\n* 📞 Primary Contact / WhatsApp: +91 99675 45457 / +91 79904 71863.\n* ✉️ Corporate Email Support: materials.jayshree@gmail.com\n\n------------------------------\nWould you like to look up specific thread dimension charts, verify temperature-dependent pressure limitations for CF8M, or plan a custom pricing quote for bulk quantities?\n\n[1] [https://www.facebook.com](https://www.facebook.com/jayshree857/photos/jayshree-industrial-corporation-manufacturer-and-supplier-of-ic-investment-casti/1616934082943584/)\n[7] [https://www.icfitting.com](https://www.icfitting.com/latest-update/ic-fittings-manufacturer-in-ahmedabad-gujarat-in/53)\n[9] [https://www.justdial.com](https://www.justdial.com/Ahmedabad/Jayshree-Industrial-Corporation-Nagarwel-Hanuman-Rakhial/079PXX79-XX79-190402120556-B5W3_BZDET)\n[10] https://www.icfitting.com\n[11] [https://www.facebook.com](https://www.facebook.com/jayshree857/)\n\n## Threaded Pipe Fittings Breakdown\nThe image displays a comprehensive collection of standard industrial threaded pipe fittings (typically manufactured in stainless steel, carbon steel, or malleable iron) used to join, redirect, or terminate fluid piping systems.\n------------------------------\n## 🔩 Component Directory & Functions\n\n* Coupling: A short female-threaded cylinder used to connect two straight pipe lengths of the same size.\n* Cross: A 4-way branch fitting used to connect four intersecting lines.\n* Hex Plug: A solid external male-threaded plug with a hexagonal head used to close the end of a female-threaded fitting.\n* 45° Elbow: Shifts the piping direction by a 45-degree angle.\n* Cap: A female-threaded dome fitting used to seal off the open end of a male-threaded pipe.\n* Bell Reducer: A concentric reducing sleeve with female threads on both sides used to transition between a larger and a smaller pipe size.\n* Union: A 3-piece detachable coupling that allows lines to be disconnected for service without spinning the pipes.\n* Bushing: An adapter with external male threads and smaller internal female threads used to reduce a fitting size.\n* 90° St Ell (Street Elbow): A 90-degree bend with male threads on one end and female threads on the other.\n* Tee: A T-shaped 3-way fitting used to combine or split fluid flow.\n* 90° Elbow: A standard internal female-threaded bend that alters piping direction by 90 degrees.\n* Nipple: A straight piece of pipe featuring external male threads on both ends, used to extend a line or bridge fittings.\n\n------------------------------\nWould you like me to look up the standard dimensional specs (such as ASME B16.11), or help you check pressure ratings (like 150#, 3000#, or 6000# class standards)?\n\n", "price": 145.0, "discountamount": 0.0, "currencycode": "INR", "priority": 1000000, "isfreeshipmentavailable": false, "shipmentduration": 1, "_keywords": null, "isarchived": false, "isavailable": true, "applicationid": null, "productindex": 312, "imageuri": "https://productimages.withfloats.com/actual/6a11a29e4473863dba389041.jpg", "tileimageuri": "https://productimages.withfloats.com/tile/6a11a29e4473863dba389041.jpg", "images": null, "totalqueries": 0, "gpid": null, "groupproductid": null, "createdon": "2026-05-23T12:50:36.5Z", "updatedon": "2026-05-23T12:50:36.5Z", "buyonlinelink": null, "producturl": "http://WWW.ICFITTING.COM//investment-casting-ic-fittings/312", "availableunits": -1.0, "iscodavailable": false, "isprepaidonlineavailable": false, "maxcodorders": 0, "maxprepaidonlineorders": 0, "uniquepaymenturl": null, "brandname": "Jayshree", "category": "Investment Casting (IC) fittings", "tags": [], "variants": false, "keyspecification": null, "otherspecifications": null, "pickupaddressreferenceid": null, "paymenttype": "UniquePaymentUrl", "producttype": "products", "hsncode": null, "gstslab": 0.0, "isnotforsale": false }, { "_id": "6a10393f7c4f650789c1da6b", "fptag": "JAYSHREEINDUSTRIALCORPORATION", "merchantname": null, "customwidgets": null, "externalsourceid": null, "name": "S.S. TC (Tri-Clover) Fittings, Camlock Couplings, and Valves", "description": "The provided image catalogs SS TC (Tri-Clover) Fittings, Camlock Couplings, and Valves manufactured by Jayshree Industrial Corporation. These highly polished, quick-release sanitary components and robust process valves are engineered for leak-proof fluid control in hygienic and chemical process lines.\n------------------------------\n## ⚙️ Sanitary TC Fittings & Hose Accessories\n\n* Flexible Hose Pipe / IC Hose: Braided and flexible hoses for vibration dampening and variable-angle fluid transfers.\n* TC Hose Nipple / TC Strainer: Inline flanged sanitary nipples and screen elements to safely connect and filter flexible tubing runs.\n* Tube Expander / Tube Q & U: Specialized fabrication tooling and complex pre-bent safety bypass loops.\n* Syphon Cock: Compact balancing device designed to isolate pressure gauges from damaging hot steam lines.\n\n------------------------------\n## 🔒 S.S. Camlock Coupling Products (Quick Disconnects)\nCamlock fittings provide rapid, tool-free hose connections by snapping heavy-duty locking arms into a groove.\n\n* Type A: Male Adapter with a Female Pipe Thread end.\n* Type B: Female Coupler with a Male Pipe Thread end.\n* Type C: Female Coupler with a serrated Hose Shank/Barb end.\n* Type D: Female Coupler with a Female Pipe Thread end.\n* Type E: Male Adapter with a serrated Hose Shank/Barb end.\n* Type F: Male Adapter with a Male Pipe Thread end.\n* Type DP (Dust Plug): Seals an open Female Coupler when the line is offline.\n* Type DC (Dust Cap): Seals an open Male Adapter to prevent line contamination.\n\n------------------------------\n## 🎛️ Valve & Flow Isolation Instrumentation## High-Pressure & Safety Valves\n\n* Needle Valve: Rated up to 5,000 PSI; features a tapered needle plunger for precise manual flow-throttling.\n* Safety Valve (Angle Type): Automated spring-loaded pressure relief valve to bleed off dangerous over-pressure spikes.\n* PU Connector / Ferrule Fittings: Precision twin-ferrule instrumentation fittings for securing miniature polyurethane air lines.\n\n## Non-Return Valves (NRVs / Check Valves)\n\n* NRV Vertical / NRV Horizontal: Mechanical inline check valves ensuring unidirectional fluid motion.\n* Disc Check Valve / Wafer Check Valve: Ultra-compact, space-saving check plates clamped directly between standard pipe flanges.\n\n## Quarter-Turn Isolation Ball & Butterfly Valves\n\n* BSP Ball Valve Bar Stock / 2 PC Ball Valve: Highly durable inline isolation valves for general-duty pipelines.\n* Three PC Ball Valve / 3 PC T.C. Ball Valve: A three-piece layout that allows the center valve core to swing out for quick seat maintenance without un-welding the pipe ends.\n* Three-Way Valve: Multi-port L-port or T-port ball configuration to divert or mix distinct flow channels.\n* Flange Type Ball Valve: Heavy bolted-flange block valve for severe structural processing systems.\n* Butterfly Handle Ball Valve: Wing-handle configuration optimized for confined structural piping manifolds.\n* CI Butterfly Valves / Butterfly Valve: High-flow, compact rotary disks (cast iron or stainless steel) for throttling bulk fluids.\n\n## Linear Stem Process Valves & Strainers\n\n* Globe Valve: Multi-turn stem valve engineered for high-frequency fluid throttling and flow modulation.\n* Gate Valve: On/off service wedge-gate valve providing a straight, completely unrestricted bore when fully open.\n* Y-Type Strainer: Mechanics-enclosed perforated screen pocket to trap debris without causing massive inline pressure drops.\n\n------------------------------\nIf you are designing a processing manifold, I can help you look up pressure-temperature ratings for these valves, cross-reference gasket chemical compatibilities, or find direct factory price charts from Jayshree Industrial Corporation. Which details should we evaluate next?\n\n", "price": 190.0, "discountamount": 0.0, "currencycode": "INR", "priority": 1000000, "isfreeshipmentavailable": false, "shipmentduration": 1, "_keywords": null, "isarchived": false, "isavailable": true, "applicationid": null, "productindex": 302, "imageuri": "https://productimages.withfloats.com/actual/6a103943a21e2e0c5dfe8a82.jpeg", "tileimageuri": "https://productimages.withfloats.com/tile/6a103943a21e2e0c5dfe8a82.jpeg", "images": null, "totalqueries": 0, "gpid": null, "groupproductid": null, "createdon": "2026-05-22T11:08:47.926Z", "updatedon": "2026-05-22T11:08:47.926Z", "buyonlinelink": null, "producturl": "http://WWW.ICFITTING.COM//s-s-tc-tri-clover-fittings-camlock-couplings-and-valves/302", "availableunits": -1.0, "iscodavailable": false, "isprepaidonlineavailable": false, "maxcodorders": 0, "maxprepaidonlineorders": 0, "uniquepaymenturl": null, "brandname": "Jayshree", "category": "S.S. TC (Tri-Clover) Fittings, Camlock Couplings, and Valves", "tags": [ "SS TC (Tri-Clover) Fittings Manufacturer in india", "SS TC (Tri-Clover) Fittings Manufacturer in Gujarat", "SS TC (Tri-Clover) Fittings Manufacturer in Ahmedabad", "Camlock Couplings Manufacturer in india", "Camlock Couplings Manufacturer in Gujarat", "Camlock Couplings Manufacturer in Ahmedabad" ], "variants": false, "keyspecification": null, "otherspecifications": null, "pickupaddressreferenceid": null, "paymenttype": "UniquePaymentUrl", "producttype": "products", "hsncode": null, "gstslab": 0.0, "isnotforsale": false }, { "_id": "6a101d144863b7215cac38d5", "fptag": "JAYSHREEINDUSTRIALCORPORATION", "merchantname": null, "customwidgets": null, "externalsourceid": null, "name": "Pipes & Tubes", "description": "This product line covers industrial pipes, tubes, and sheets engineered for high-pressure, high-temperature, and highly corrosive applications. These components are available in seamless or welded construction and span a diverse range of metal alloys.\n------------------------------\n## ⚙️ Technical Specifications & Size Range## Pipe & Tube Diameters\n\n* Seamless: Up to 24“ NB (Nominal Bore) for uniform structural strength under high pressure.\n* Welded / ERW: 1/2” NB to 60\" NB for large-diameter fluid transfer and structural lines.\n\n## Structural Profiles\n\n* Available in Round, Square, and Rectangular geometries.\n\n## Regulation Compliance\n\n* Sourced in both IBR (Indian Boiler Regulations) certified for steam/boiler lines and Non-IBR configurations for standard fluid transfer.\n\n------------------------------\n## 📋 Material Grades & ASTM Standards## 1. Stainless Steel (Corrosion & Temperature Resistant)\n\n* Standards: ASTM A312 (Pipe), A213 (Boiler/Heat Exchanger Tube), A249 (Welded Boiler Tube), A269 (General Tubing), A358 (Electric-Fusion-Welded Pipe), A240 (Plate/Sheet).\n* Austenitic Grades: 202, 304, 304L (Low Carbon), 304H (High Temp), 316, 316L, 317, 317L.\n* Stabilized & High-Alloy: 316Ti (Titanium stabilized), 321, 321H, 310, 310S (High-temperature scale resistance).\n* Ferritic/Martensitic Grades: 409, 410, 420, 430 (Magnetic, high hardness, or automotive exhaust use).\n\n## 2. Carbon Steel (High Pressure & Standard Structural)\n\n* Standards: ASTM A106 (Seamless high-temp), A53 (Welded/Seamless general pipe).\n* Pipeline Grades: API 5L Grade A, B, and C (Cross-country oil and gas transport).\n* Low-Temperature Service: ASTM A333 Grade 1 to 6 (Engineered for sub-zero impact toughness).\n\n## 3. Alloy Steel (Power Plant & High-Temperature Piping)\n\n* Standard: ASTM A335 (Seamless ferritic alloy-steel pipe for high-temperature service).\n* Grades: P1, P2, P5, P9, P11, P22, P91 (Chromium-Molybdenum alloys designed to resist creep deformation in boilers and power plants).\n\n## 4. Nickel & Exotic Alloys (Extreme Chemical Resistance)\n\n* Materials: Hastelloy (Exceptional resistance to hot acids), 904L (Super-austenitic steel for severe sulphuric acid exposure), and Titanium (High strength-to-weight ratio, ultimate saltwater resistance).\n\n## 5. Copper Alloys (Heat Transfer & Marine Duty)\n\n* Materials: Pure Copper, Brass, Aluminium, and Gunmetal (Excellent thermal conductivity, electrical grounding, anti-galling properties, and marine bio-fouling resistance).\n\n------------------------------\n## 🏢 Raw Supply Formats\n\n* Pipes: Sized by Nominal Bore (NB) and Schedule wall thickness (e.g., Sch 40, Sch 80).\n* Tubes: Sized by exact Outside Diameter (OD) and Wire Gauge thickness (SWG/BWG).\n* Sheets: ASTM A240 flat-rolled stock used for fabricating vessels, tanks, and structural ducting.\n\nAre you looking to cross-reference wall thickness schedules for a specific NB size, or do you need to verify the pressure ratings for high-temperature ASTM A335 P22/P91 alloy pipes? Let me know how to proceed.\n\n", "price": 230.0, "discountamount": 0.0, "currencycode": "INR", "priority": 1000000, "isfreeshipmentavailable": false, "shipmentduration": 1, "_keywords": null, "isarchived": false, "isavailable": true, "applicationid": null, "productindex": 289, "imageuri": "https://productimages.withfloats.com/actual/6a101d16a21e2e0c5dfe877a.jpg", "tileimageuri": "https://productimages.withfloats.com/tile/6a101d16a21e2e0c5dfe877a.jpg", "images": null, "totalqueries": 0, "gpid": null, "groupproductid": null, "createdon": "2026-05-22T09:08:36.858Z", "updatedon": "2026-05-22T09:08:36.858Z", "buyonlinelink": null, "producturl": "http://WWW.ICFITTING.COM//pipes-tubes/289", "availableunits": -1.0, "iscodavailable": false, "isprepaidonlineavailable": false, "maxcodorders": 0, "maxprepaidonlineorders": 0, "uniquepaymenturl": null, "brandname": "Jayshree", "category": "Pipes & Tubes", "tags": [ "Tube Manufacturer IN AHMEDABAD", "Tube Manufacturer gujarat", "Tube Manufacturer in india", "Pipe Manufacturer IN AHMEDABAD", "Pipe Manufacturer in india", "Pipe Manufacturer in gujarat" ], "variants": false, "keyspecification": null, "otherspecifications": null, "pickupaddressreferenceid": null, "paymenttype": "UniquePaymentUrl", "producttype": "products", "hsncode": null, "gstslab": 0.0, "isnotforsale": false }, { "_id": "6a101391ae366792594a276c", "fptag": "JAYSHREEINDUSTRIALCORPORATION", "merchantname": null, "customwidgets": null, "externalsourceid": null, "name": "Tube & Instrumentation Fitting", "description": "Jayshree Industrial Corporation provides heavy-duty forged pipe and tube fittings engineered for high-pressure instrumentation and process control networks. This product line includes a wide variety of configurations designed to minimize the total number of joints needed in a piping system.\n## ⚙️ Technical Specifications## Sizing & End Connections\n\n* Tube & Instrumentation Sizes: 1/8” to 1” tube/pipe ends.\n* Process Line Sizes: 1/2” to 2 ½” ends.\n* Connection Varieties: NPT threads, BSP threads, Male/Female threaded, Butt weldable, Socket weldable, and Tube weldable ends.\n\n## Pressure Ratings by Material\n\n* Carbon Steel & Brass: Up to 6,000 PSI (400 bar).\n* Stainless Steel, Monel & Alloy Steel: Up to 10,000 PSI (700 bar).\n\n## 📋 Product Configuration Range## Straight Connectors & Unions\n\n* Union / Reducing Union: Joins two tubes of the same or different sizes.\n* Bulkhead Union: Mounts through panels or walls to secure tube lines.\n* Male Connector / Bulkhead Male Connector: Connects a tube line to a female pipe thread.\n* Female Connector / Bulkhead Female Connector: Connects a tube line to a male pipe thread.\n\n## Branching & Directional Fittings\n\n* Union Tee / Union Cross: Splits or combines flow into three or four tube directions.\n* Elbow Union / Female Elbow / Male Elbow: Changes tube direction by 90 degrees with various end combinations.\n* Male Run Tee: A T-junction where the male pipe thread is on the straight run.\n* Male Branch Tee: A T-junction where the male pipe thread is on the branch angle.\n\n## Adapters & Reducers\n\n* Male Adapter / Female Adapter: Transitions a tube fitting to a threaded pipe system.\n* Reducer / Bulkhead Reducer: Connects a smaller tube size directly into a larger tube fitting.\n\n## Weld Transitions & Closures\n\n* Male Pipe Weld Connector: Seamlessly transitions from a welded pipe system to a tube system.\n* Tube Plug / Tube Cap: Seals off tube ends or fitting bodies safely.\n* Nut: Reusable compression component to secure ferrules onto the tube.\n\nIf you are setting up a system, I can help you select the right weld versus thread configuration, check Monel material compatibility for corrosive gases, or review the installation torque requirements for 10,000 PSI systems. Which aspect would you like to explore next?\n\n", "price": 135.0, "discountamount": 0.0, "currencycode": "INR", "priority": 1000000, "isfreeshipmentavailable": false, "shipmentduration": 1, "_keywords": null, "isarchived": false, "isavailable": true, "applicationid": null, "productindex": 286, "imageuri": "https://productimages.withfloats.com/actual/6a101394ea20e81a499f85b7.jpg", "tileimageuri": "https://productimages.withfloats.com/tile/6a101394ea20e81a499f85b7.jpg", "images": null, "totalqueries": 0, "gpid": null, "groupproductid": null, "createdon": "2026-05-22T08:28:01.854Z", "updatedon": "2026-05-22T08:28:01.854Z", "buyonlinelink": null, "producturl": "http://WWW.ICFITTING.COM//tube-instrumentation-fitting/286", "availableunits": -1.0, "iscodavailable": false, "isprepaidonlineavailable": false, "maxcodorders": 0, "maxprepaidonlineorders": 0, "uniquepaymenturl": null, "brandname": "Jayshree", "category": "Tube & Instrumentation Fitting", "tags": [], "variants": false, "keyspecification": null, "otherspecifications": null, "pickupaddressreferenceid": null, "paymenttype": "UniquePaymentUrl", "producttype": "products", "hsncode": null, "gstslab": 0.0, "isnotforsale": false }, { "_id": "6a0efef921349ee368626189", "fptag": "JAYSHREEINDUSTRIALCORPORATION", "merchantname": null, "customwidgets": null, "externalsourceid": null, "name": "Polypropylene (Plastic) Camlock Couplings", "description": "Polypropylene (Plastic) Camlock Couplings (also known as cam and groove couplings or quick-disconnect fittings).Unlike the heavy-duty stainless steel components we discussed earlier, these are lightweight, rust-proof, and budget-friendly alternatives designed for fast, tool-free hose connections.⚙️ How the System WorksThe camlock system relies on a simple male-and-female interlocking mechanism:A Male Adapter (plug) slides smoothly inside a matching Female Coupler (socket).The operator presses the silver side cam arms downward.The arms lock into a deep groove on the male plug, pulling it tight against an internal rubber gasket to establish an instant, leak-proof seal.🧱 Component Identification GuideCamlock fittings are globally standardized by “Type” letters based on their end connections. The layout shows:Type C Coupler (Top Row, 3rd from left): A female coupler on one end with a ridged hose shank (barb) on the other, designed to push directly inside a flexible hose line.Type B or D Coupler (Top Row, 2nd and 4th from left): Female couplers equipped with either internal female threads or external male threads to screw directly onto rigid pipe networks or pump manifolds.Type E Adapter (Bottom Row, far left): A male plug with a hose shank barb for flexible tubing connections.Type F Adapter (Bottom Row, 2nd from left): A male plug featuring external male pipe threads (marked 200, indicating a standard 2-inch nominal size).Dust Cap & Plug (Bottom Row, right side): Used to seal off open pipe ends when the primary hose lines are disconnected, protecting the fluid system from dirt, insects, and debris.🔧 Primary Applications & Material BenefitsBecause they are molded from high-density polypropylene, they offer unique advantages:Chemical & Acid Resistance: Highly resistant to aggressive liquid fertilizers, agricultural pesticides, and mild industrial acids that would corrode brass or steel.Agriculture & Irrigation: Widely used on mobile water tankers, crop sprayers, and farm irrigation pumps for quick field breakdown.Pumping & Dewatering: Connecting suction and discharge hoses on portable construction or municipal water bypass pumps.Pressure Constraint Note: Polypropylene fittings are designed for low-pressure utility service (typically under 100–125 PSI depending on size) and should never be used for compressed air or gas lines.If you are setting up a chemical transfer system or water bypass loop, let me know:What nominal size (such as 1-1/2“ or 2”) are you trying to adapt?What fluid or chemical will be moving through these lines?Do you need help choosing between standard NBR/Buna-N gaskets or chemically inert Viton/PTFE gaskets for your fluid?I can help ensure you select the correct thread style and gasket compound for a safe setup!", "price": 250.0, "discountamount": 0.0, "currencycode": "INR", "priority": 1000000, "isfreeshipmentavailable": false, "shipmentduration": 1, "_keywords": null, "isarchived": false, "isavailable": true, "applicationid": null, "productindex": 279, "imageuri": "https://productimages.withfloats.com/actual/6a0efefcdf2662d98eda2671.jpg", "tileimageuri": "https://productimages.withfloats.com/tile/6a0efefcdf2662d98eda2671.jpg", "images": null, "totalqueries": 0, "gpid": null, "groupproductid": null, "createdon": "2026-05-21T12:47:53.272Z", "updatedon": "2026-05-21T12:47:53.272Z", "buyonlinelink": null, "producturl": "http://WWW.ICFITTING.COM//polypropylene-plastic-camlock-couplings/279", "availableunits": -1.0, "iscodavailable": false, "isprepaidonlineavailable": false, "maxcodorders": 0, "maxprepaidonlineorders": 0, "uniquepaymenturl": null, "brandname": "import", "category": "Polypropylene (Plastic) Camlock Couplings", "tags": [], "variants": false, "keyspecification": null, "otherspecifications": null, "pickupaddressreferenceid": null, "paymenttype": "UniquePaymentUrl", "producttype": "products", "hsncode": null, "gstslab": 0.0, "isnotforsale": false }, { "_id": "6a0edd68c34315146b5826e7", "fptag": "JAYSHREEINDUSTRIALCORPORATION", "merchantname": null, "customwidgets": null, "externalsourceid": null, "name": "Stainless Steel Wafer Disc Check Valve", "description": "Stainless Steel Wafer Disc Check Valve (also known as a spring-loaded non-slam check valve or compact non-return valve).⚙️ Design & ComponentsThe Outer Body / Lugged Ring: Features a compact, space-saving wafer design with multi-sided alignment lugs. These allow the valve to be quickly centered and sandwiched directly between standard pipe flanges using continuous thread studs.The Center Disc (Poppet): The smooth circular plate positioned in the middle. Forward fluid pressure forces the disc backward into the body to open the line.The Star Guide & Spring (Internal): The central 4-pronged structural guide frame houses an internal compression spring. The instant forward flow pressure drops, the spring slams the disc shut against the seat, completely blocking reverse backflow.💡 Core Advantages over Swing Check ValvesUltra-Compact Layout: It takes up a fraction of the pipeline space and weight compared to a bulky, traditional bolted-bonnet swing check valve.Omnidirectional Installation: Because it relies on internal spring tension rather than gravity, it can be mounted in any orientation—including vertical pipelines with downward fluid flow where a gravity-dependent swing valve would fail to operate.Non-Slam Closure: The spring assists in closing the valve before fluid flow completely reverses direction. This eliminates severe acoustic shock waves and protects piping from water hammer damage.🔧 Primary Industrial ApplicationsBecause it features an all-metal investment cast stainless steel body (typically SS 304 / CF8 or SS 316 / CF8M), it is ideal for high-purity, high-temperature, or high-pressure environments:Steam and Condensate Circuits: Trapping back-pressure lines behind boiler feed loops.Chemical & Pharma Process Lines: Handling aggressive process chemicals, solvents, and purified water.Pumping Stations: Preventing fluid slam directly downstream of vertical submersible or booster pumps\n\nWhat is the nominal size of the pipeline (e.g., 1/2“, 1”, or 2\") you are installing this between?What operating fluid, gas, or steam temperature will pass through the system?Do your specifications mandate a metal-to-metal seat for high heat, or a soft Teflon/Viton seat for bubble-tight gas isolation", "price": 230.0, "discountamount": 0.0, "currencycode": "INR", "priority": 1000000, "isfreeshipmentavailable": false, "shipmentduration": 1, "_keywords": null, "isarchived": false, "isavailable": true, "applicationid": null, "productindex": 277, "imageuri": "https://productimages.withfloats.com/actual/6a0edd6ae164d899a91c0e99.jpg", "tileimageuri": "https://productimages.withfloats.com/tile/6a0edd6ae164d899a91c0e99.jpg", "images": null, "totalqueries": 0, "gpid": null, "groupproductid": null, "createdon": "2026-05-21T10:24:40.496Z", "updatedon": "2026-05-21T10:24:40.496Z", "buyonlinelink": null, "producturl": "http://WWW.ICFITTING.COM//stainless-steel-wafer-disc-check-valve/277", "availableunits": -1.0, "iscodavailable": false, "isprepaidonlineavailable": false, "maxcodorders": 0, "maxprepaidonlineorders": 0, "uniquepaymenturl": null, "brandname": "Jayhsree", "category": "Stainless Steel Wafer Disc Check Valve", "tags": [], "variants": false, "keyspecification": null, "otherspecifications": null, "pickupaddressreferenceid": null, "paymenttype": "UniquePaymentUrl", "producttype": "products", "hsncode": null, "gstslab": 0.0, "isnotforsale": false } ], "hasmoreitems": false, "isapirequest": false, "totalresults": 27, "query": null, "floatingpoint": null }
