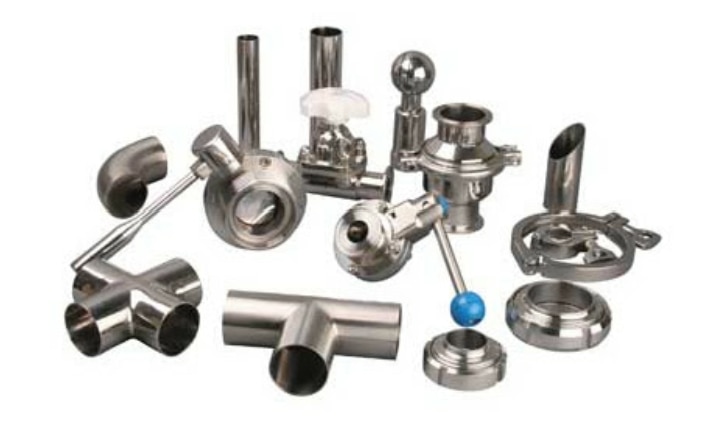

Hygienic Sanitary Stainless Steel Fittings and Butterfly Valves [1]. These parts are polished inside and out to eliminate micro-crevices, meeting strict standards for clean-in-place (CIP) operations.🧱 Component BreakdownSanitary Butterfly Valves (Middle Left): Three manual quarter-turn valves equipped with pull-rod handle levers and black ball knobs [1]. These are used for rapid on/off flow isolation in food, beverage, or pharmaceutical pipelines [1].Hygienic Weld Tees (Top & Bottom Center): T-shaped fittings with plain beveled ends [1]. They are designed to be orbitally butt-welded directly onto stainless tubes to create a 90-degree line branch without adding internal threads or pockets [1].90° Weld Elbows (Top & Bottom Left): Smooth, long-radius curves used to change pipeline direction by 90 degrees with minimal fluid friction or turbulence [1].Threaded Sanitary Unions / SMS-DIN Couplings (Top & Bottom Right): Two-part heavy circular connectors fitted with an internal sealing gasket (visible blue ring) [1]. These allow piping sections to be completely uncoupled manually for deep cleaning or maintenance [1].Tri-Clamp (Middle Right): A heavy-duty, single-pin hinged quick-release clamp used to compress standard sanitary ferrules and gaskets together for a tool-free, high-purity seal.🌟 Common ApplicationsBecause these fittings prevent bacterial growth and cross-contamination, they are used across high-purity processing sectors:Dairy Processing: Handling milk, cream, and cheese whey lines.Breweries & Wineries: Managing fermentation tanks and bottling circuits.Pharmaceutical Processing: Routing purified water systems and sterile media.If you are sourcing or installing these parts, tell me the standard layout you need to match (e.g., SMS, DIN 11851, or Tri-Clamp/TC ferrules). I can also help you verify if your process fluid requires SS 304 or chemical-resistant SS 316L steel grades.
