Description
Product details

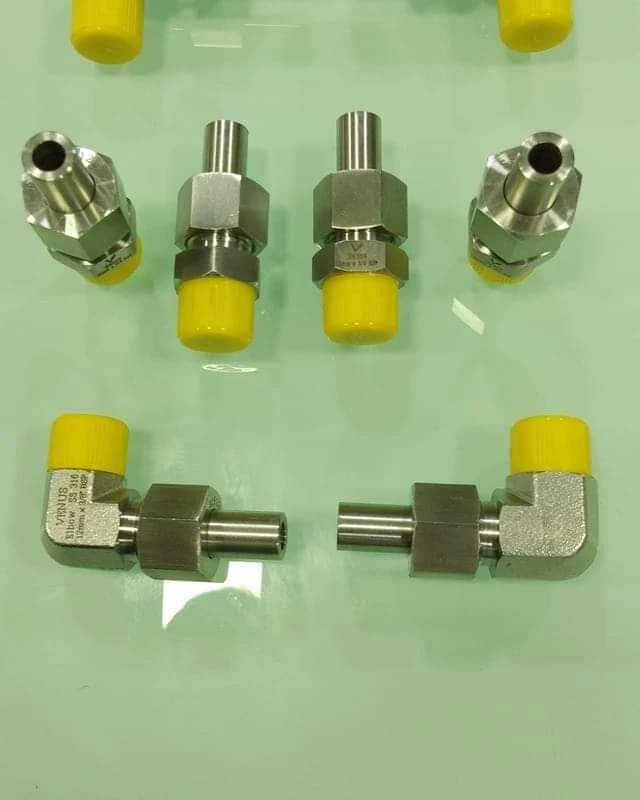

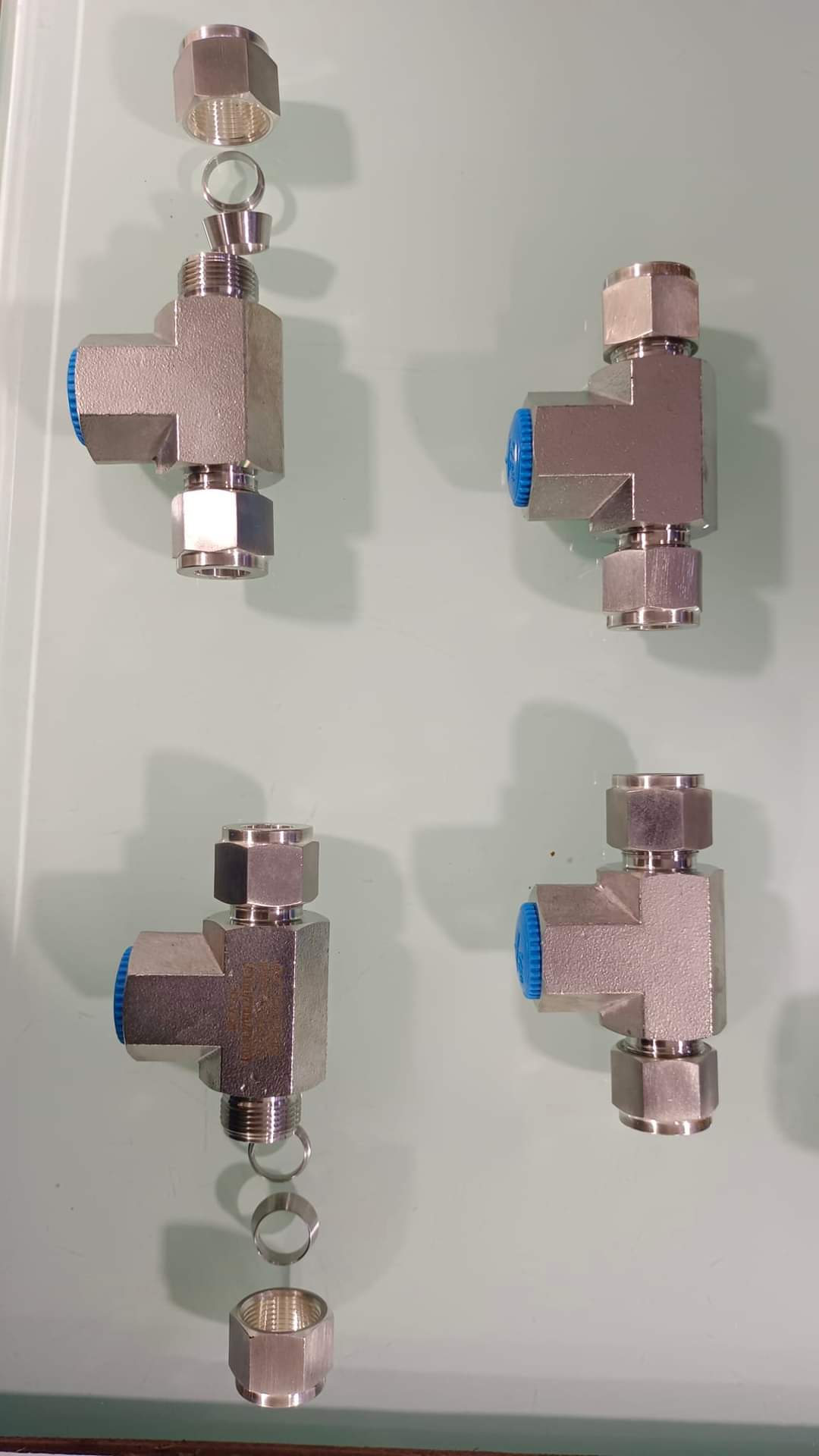

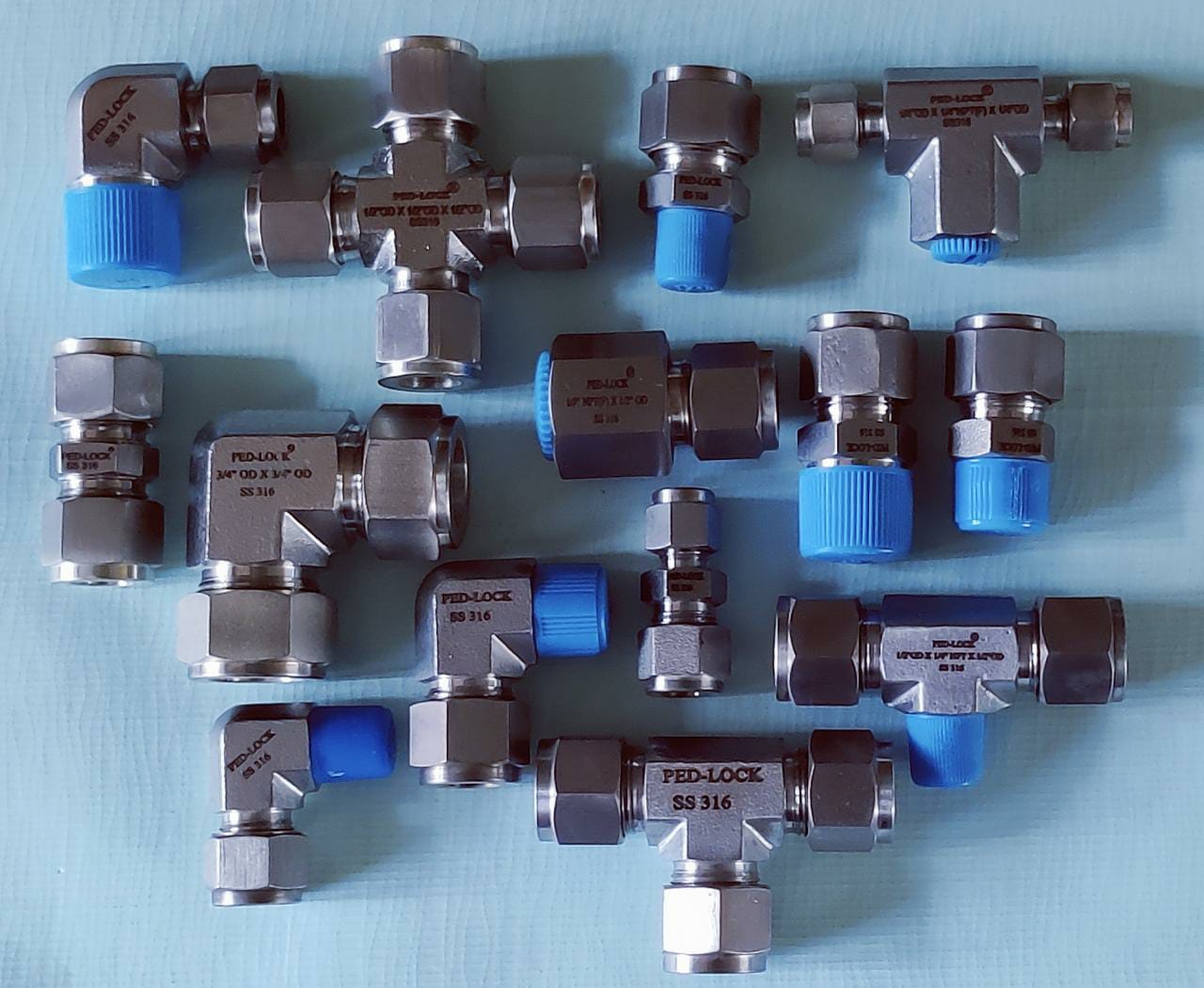

Prominent Hydraulic Fittings Manufacturers BRAND JAYSHREE STANDARD DIN 2353/ ISO 8434-1 MATERIAL MS, CS, SS 304 ,SS 304L , SS 316 ,SS 316L, SS 316TI ( 1.4571) , BRASS , COPPER , DUPLEX , SUPER DUPLEX , INCONEL , MONEL , HASTELLOY , 904L , 6MO, TITANIUM , ALUMNIUM, ALLOY 20 SERIES LL- LOW PRESSURE , L- MEDIUM PRESSURE, S- HIGH PRESSURE WORKING PRESSURE (LOW) LL SERIES - 100 BAR (MEDIUM)L SERIES - 100 BAR TO 500 BAR (HEAVY)S SERIES - 200 BAR TO 800 BAR SIZE RANGE LL SERIES - 4LL TO 12LL L SERIES - 6L TO 42L S SERIES - 6S TO 38S CONNECTIONS TUBE TO TUBE , TUBE TO MALE THREAD , TUBE TO FEMALE THREAD , TUBE TO BUTT WELD , TUBE TO SOCKET WELD , TUBE TO JIC 37* , TUBE TO 24* CONE, TUBE TO SWIVEL END , TUBE TO ADJUSTBALE STANDPIPE WELD NIPPLE TO MALE THREAD , WELD NIPPLE TO FEMALE THREAD , WELD NIPPLE TO BUTT WELD , WELD NIPPLE TO SOCKET WELD , WELD NIPPLE TO 24* CONE , WELD NIPPLE TO 37* JIC , WELD NIPPLE TO SWIVEL BODY TYPE FORGED, BAR STOCK ACCESSORIES O-RING, DOWTY SEAL , COPPER WASHER , ED SEAL, CUTTING RING , NUT O-RING & SEALS NBR ( -35*C TO 100* C ) VITON (-25*C TO 200* C) , PTFE - (-60*C TO 240*) SURFACE CARBON STEEL -TRIVALENT ZINC PLATED , YELLOW PLATTING , BLACK PHOSPHATED, STAINLESS STEEL - EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH TEMPERATURE STEEL - (-40* C TO 120*C) ,STAINLESS STEEL - (-60*C TO 400*C) BRASS - (-60*C TO 175*C) EQUIVALENT BRANDS PARKER, HY-LOK , DK-LOK , STAUFF, HYDAC , VOSS APPLICATIONS & INDUSTRIES CONSTRUCTION EQUIPMENTS , DRILLING PLATFORMS, HYDRO POWER PLANTS , MACHINE TOOLS , RAILWAY TECHNOLOGY , SHIPBUILDING , WIND TUBRINE , MOBILE HYDRAULIC EQUIPMENT , MINNING , STATIONARY HYDRAULIC EQUIPMENT, INDUSTRIAL HYDRAULICS, INJECTION MOULDING MACHINERY , ALUMINUM DIE-CASTING MACHINERY, SINTERING MACHINERY, STEEL MILLS, HYDRAULIC PRESSES, PAPER PROCESSING MOBILE HYDRAULICS, BUILDING MACHINERY, AGRICULTURAL FORESTRY, LIFTING & MATERIAL HANDLING EQUIPMENT MATERIAL DESIGNATOR STAINLESS STEEL - ASTM A 276 , ASTM 182 STEEL - ASTM 108/A105, JIS G4051 S20C, S45C,/G3201 SF440A. BRASS - ASTM B16 UNS C36000 , ASTM B282 ALLOY 37700 , JIS H3250 C3604 , C3771 , JIS H3250 C3771.
