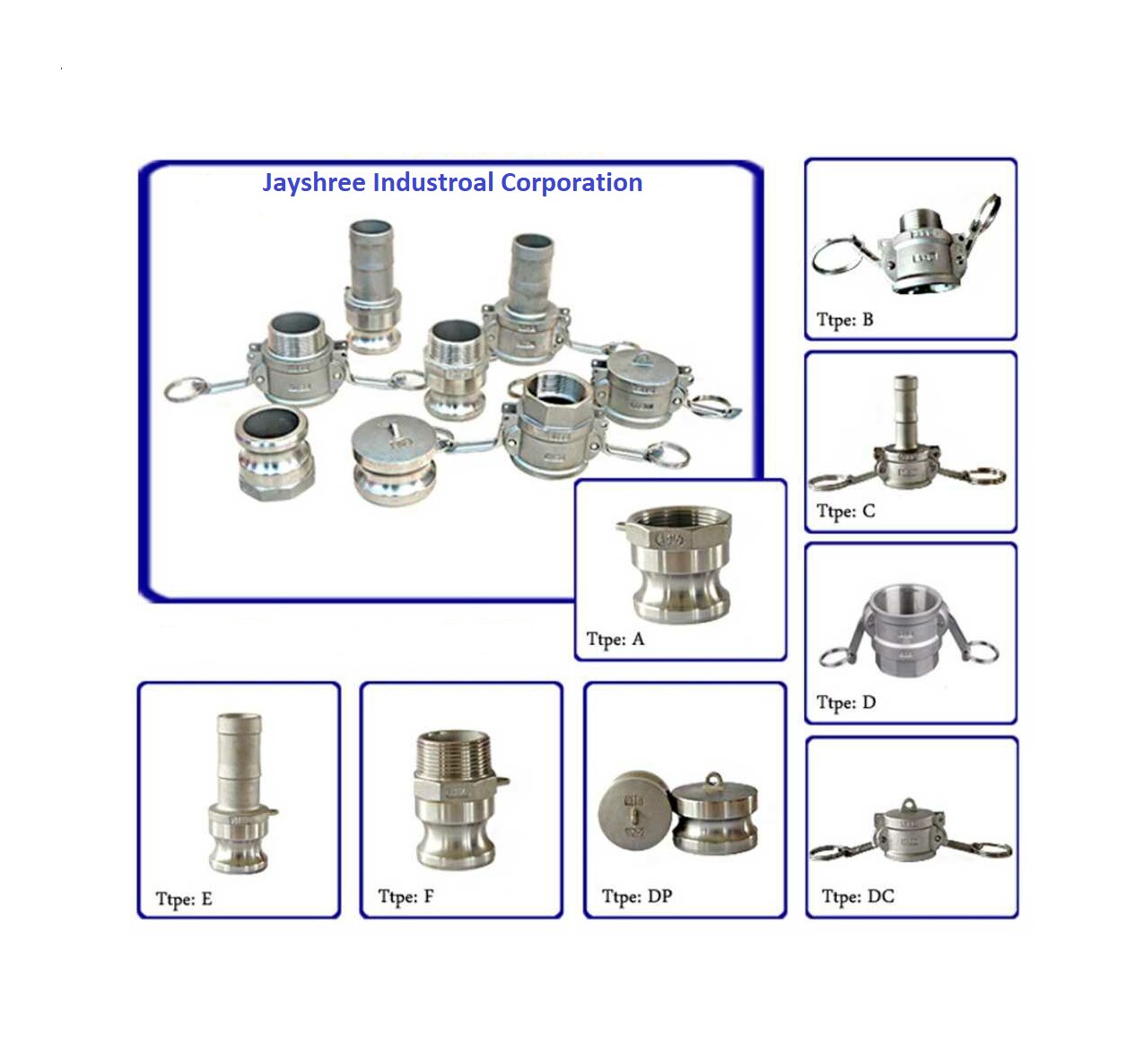

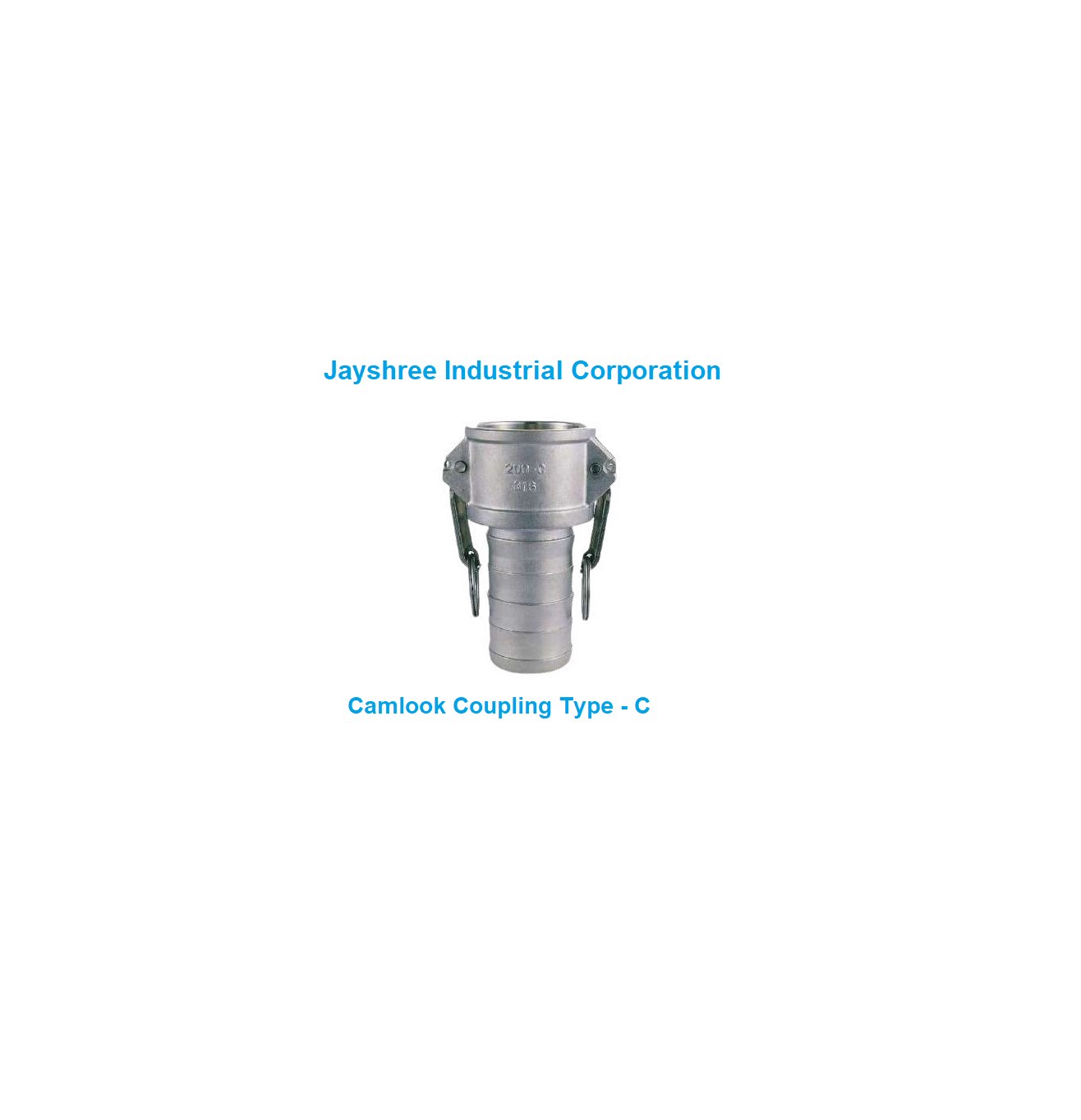

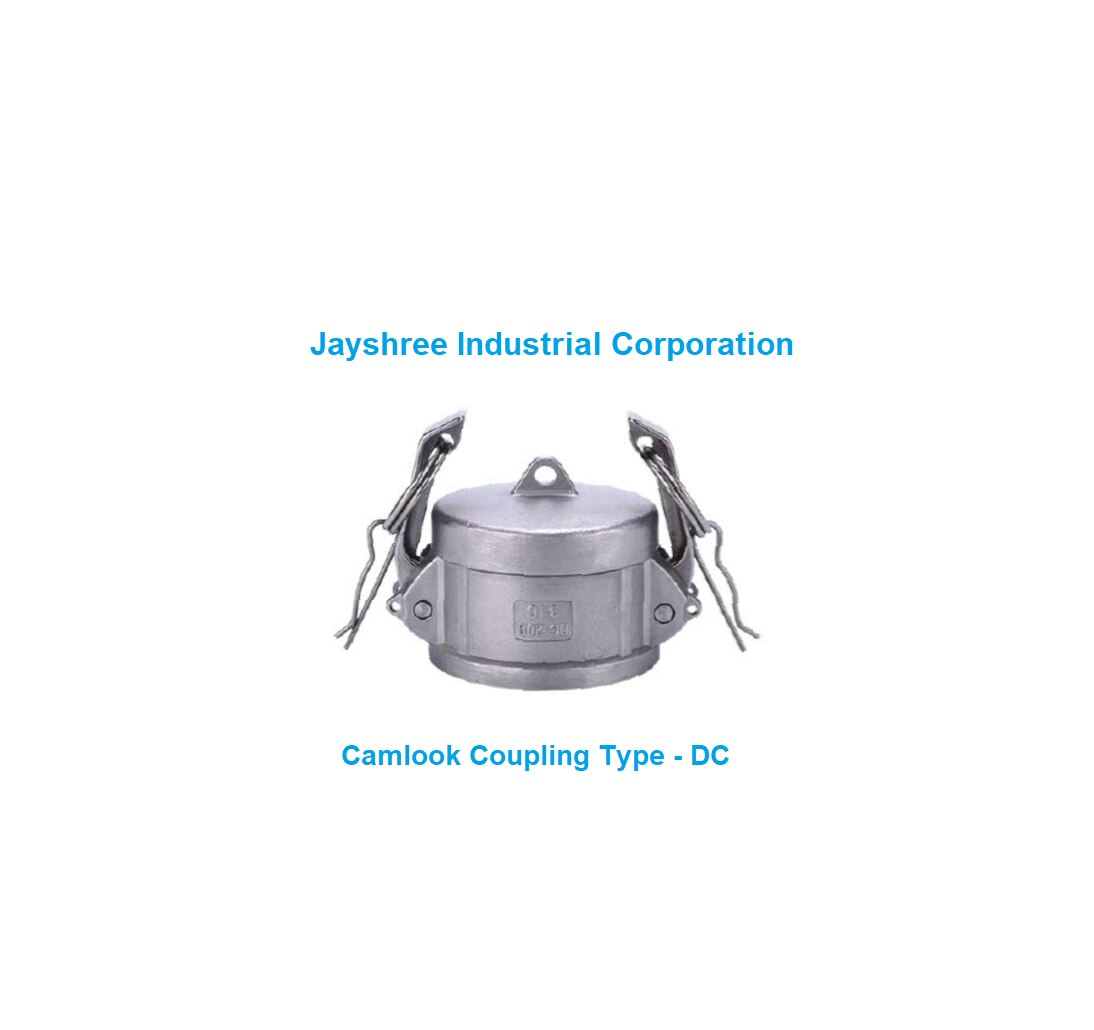

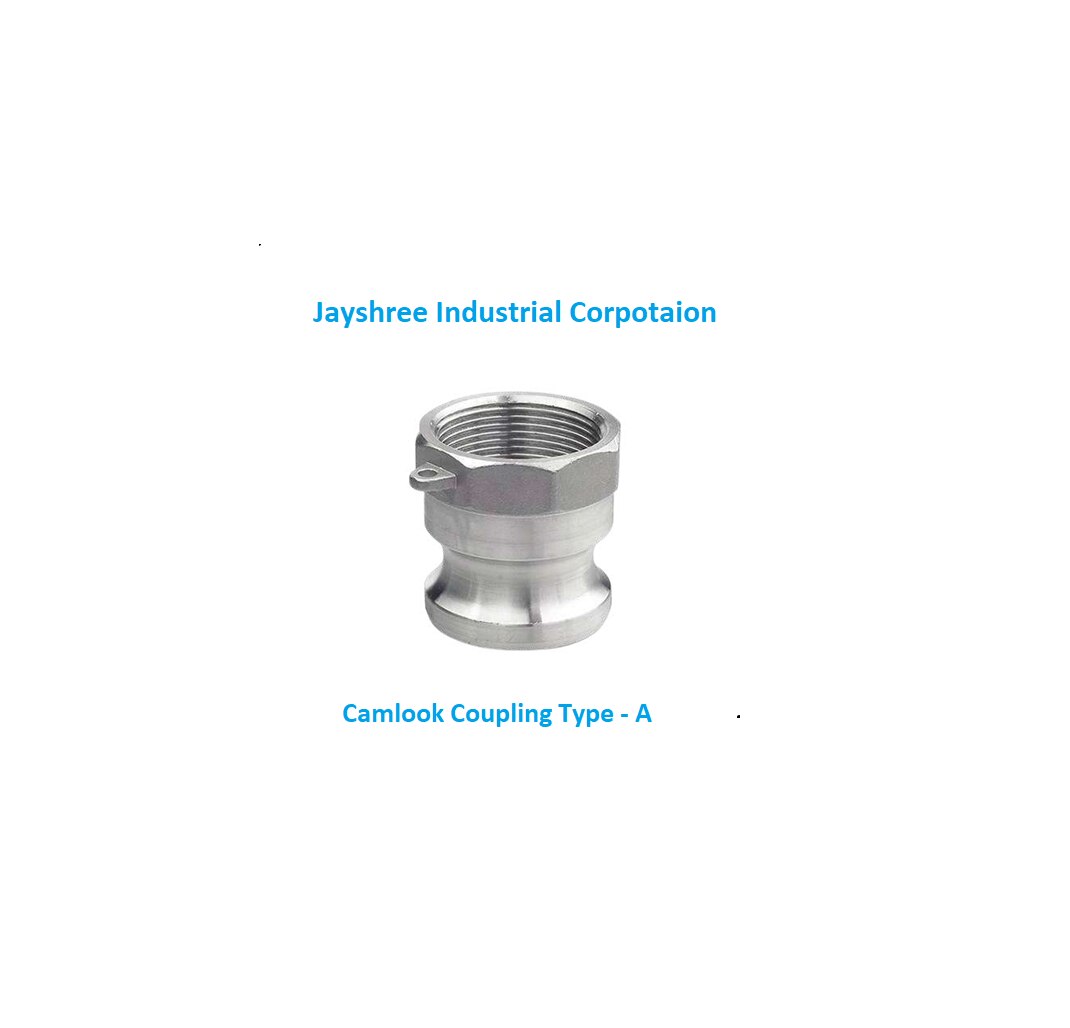

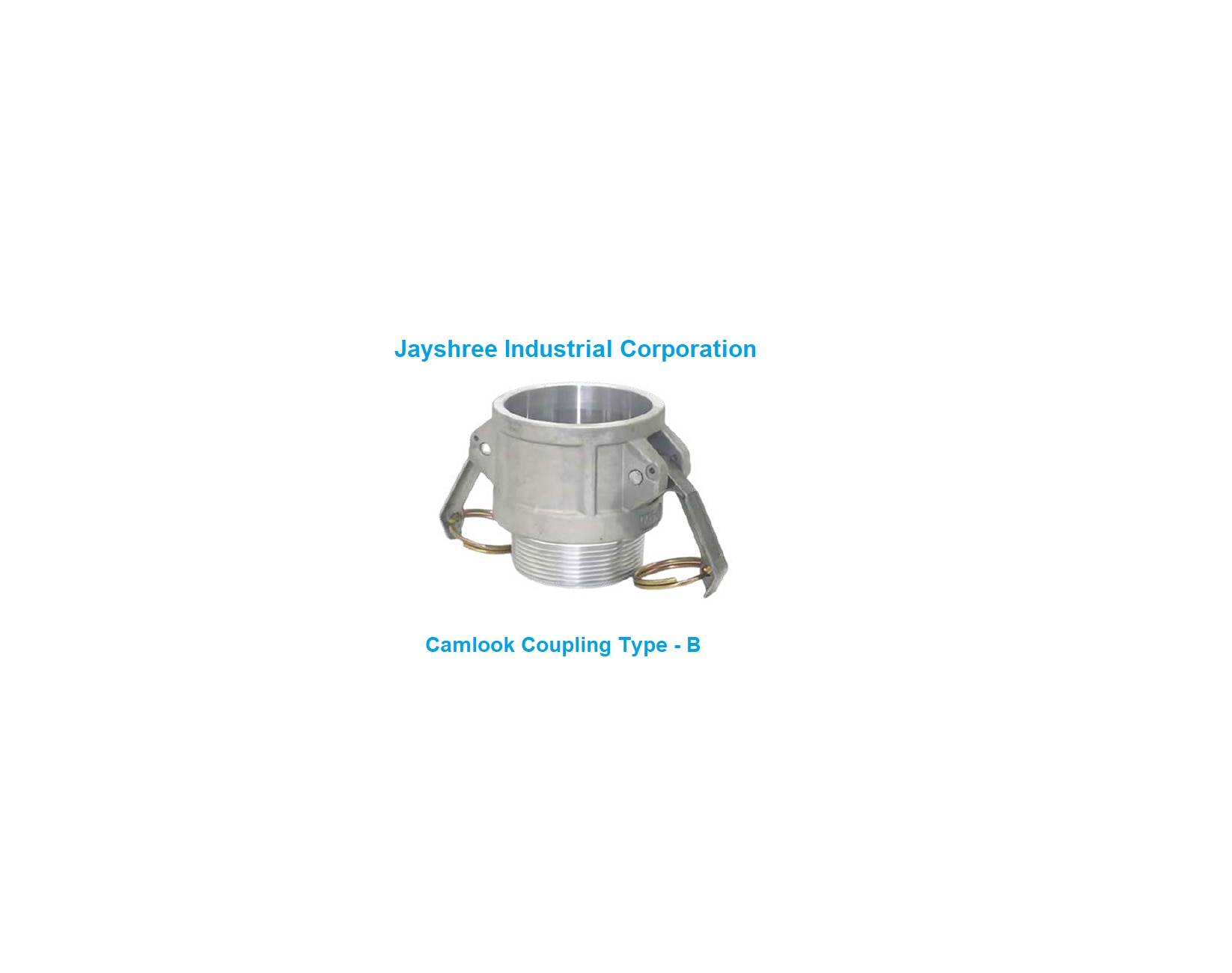

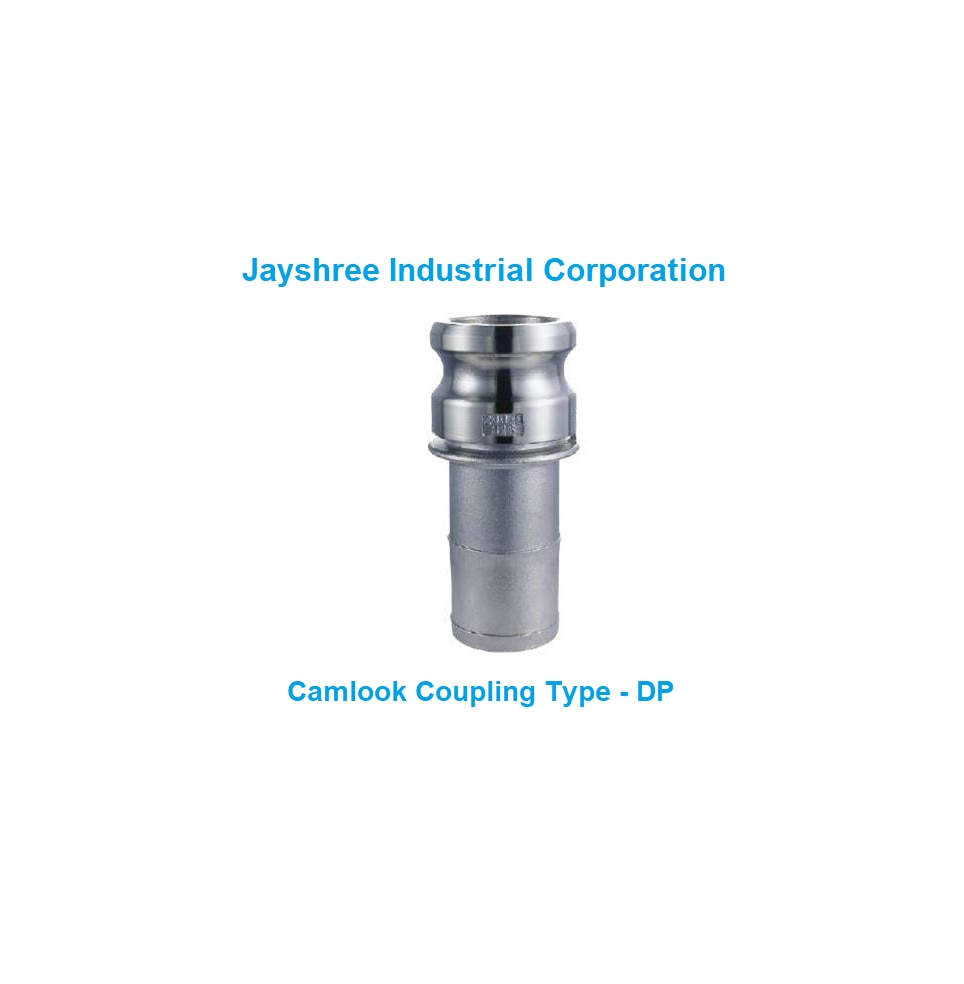

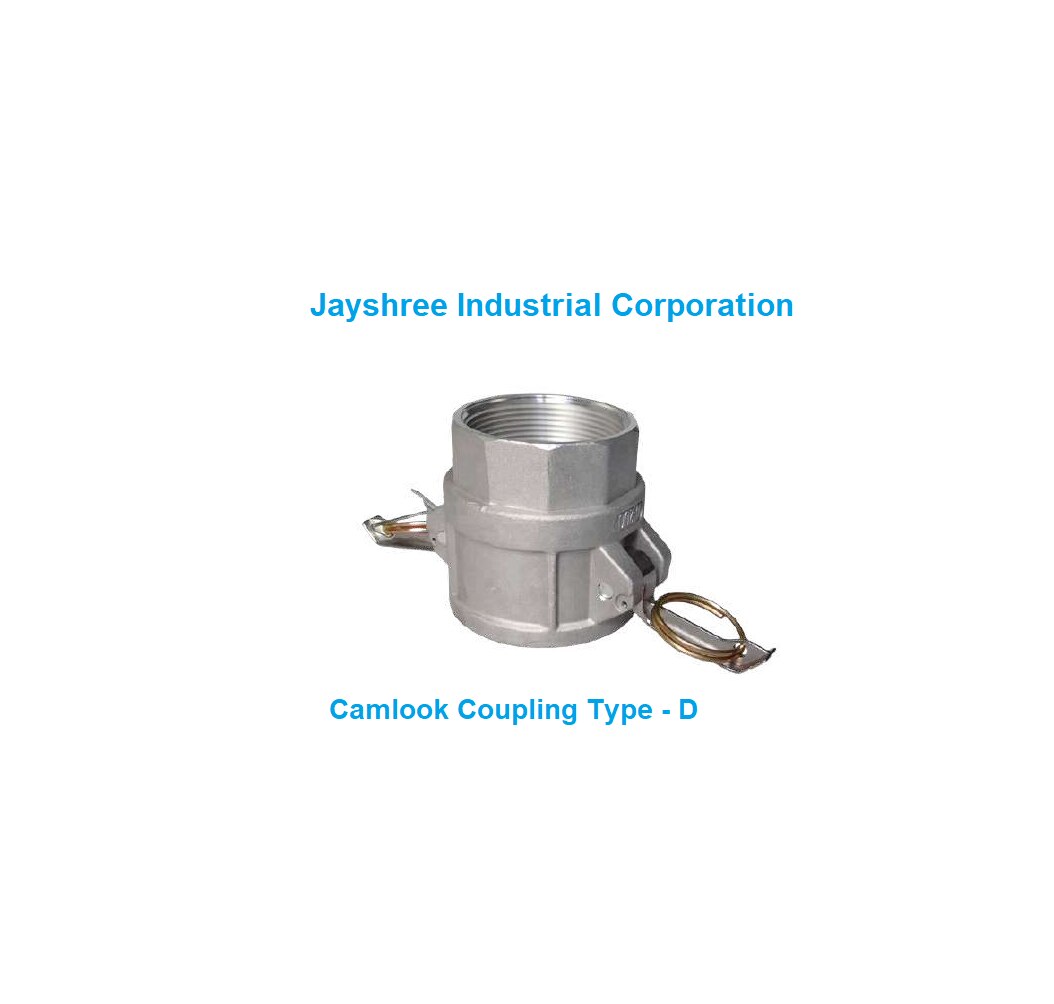

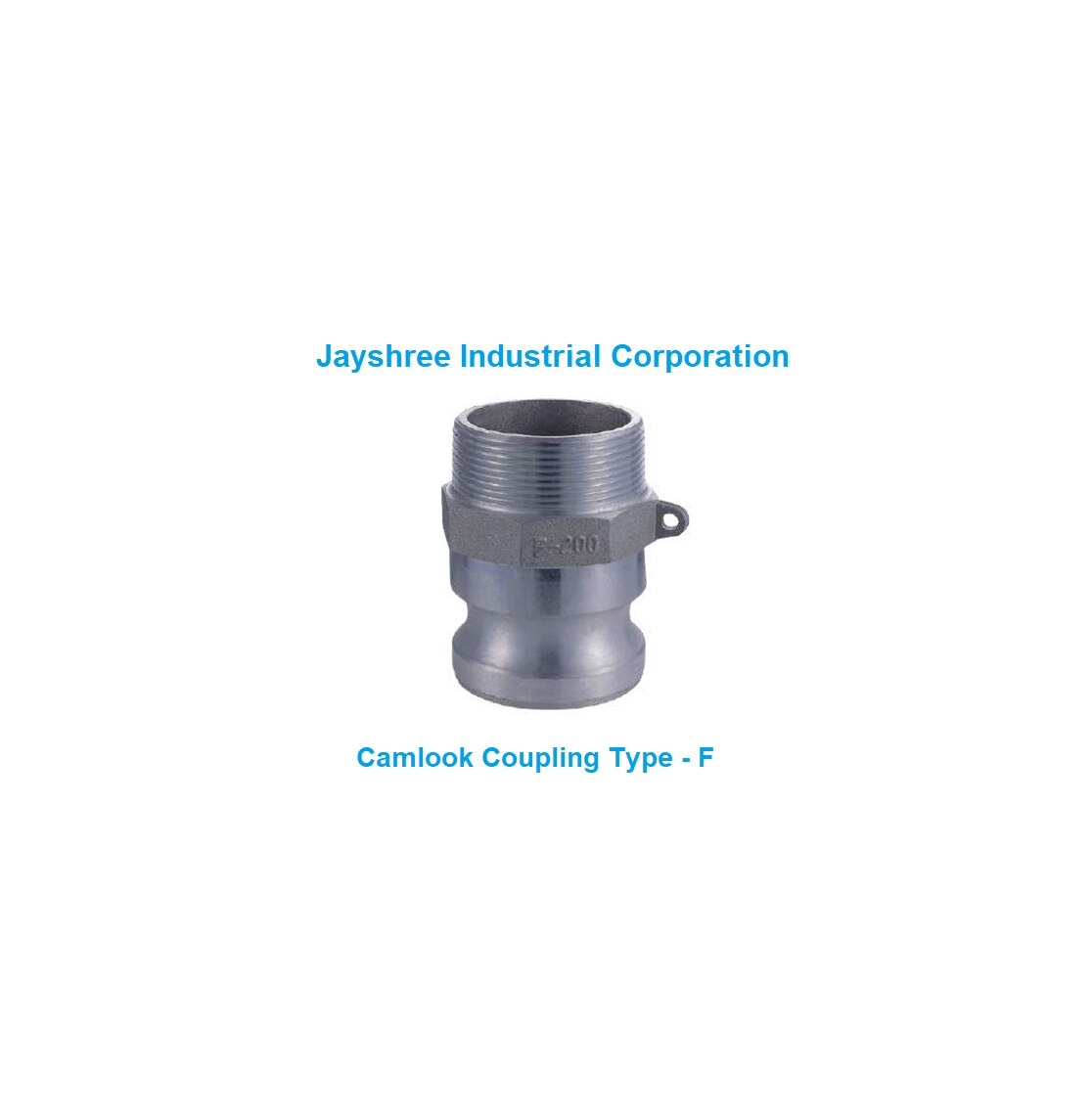

## Camlock Couplings Technical Guide The image illustrates standard industrial Camlock Couplings (also known as Cam and Groove couplings) sorted by their standard A-A-59326 (MIL-C-27487) type designations. These quick-connect fittings allow fast connection and disconnection of hoses or pipes without tools. ------------------------------ ## Camlock Type Breakdown * Type A: Male Adapter with an internal Female Thread. * Type B: Female Coupler with an external Male Thread and locking cam arms. * Type C: Female Coupler with a ridged Hose Shank/Barb for flexible hose insertion. * Type D: Female Coupler with an internal Female Thread and locking cam arms. * Type E: Male Adapter with a ridged Hose Shank/Barb. * Type F: Male Adapter with an external Male Thread. * Type DP (Dust Plug): A solid male plug inserted into a female coupler to block debris when the line is disconnected. * Type DC (Dust Cap): A solid female cap locked onto a male adapter to seal off the line when disconnected. ------------------------------ ## Common Configurations & Selection Criteria * Standard Materials: Stainless Steel (304/316), Aluminum, Brass, and Polypropylene. * Sizing Range: Typically available from $frac{1}{2}''$ to $6''$ Nominal Bore (NB). * Gasket Options: Buna-N (Standard), Viton, EPDM, and PTFE/Teflon depending on chemical compatibility. ------------------------------ Would you like to look up the working pressure limits based on material and size, or do you need help choosing the correct gasket material for your specific fluid transfer needs?
