Description
Product details

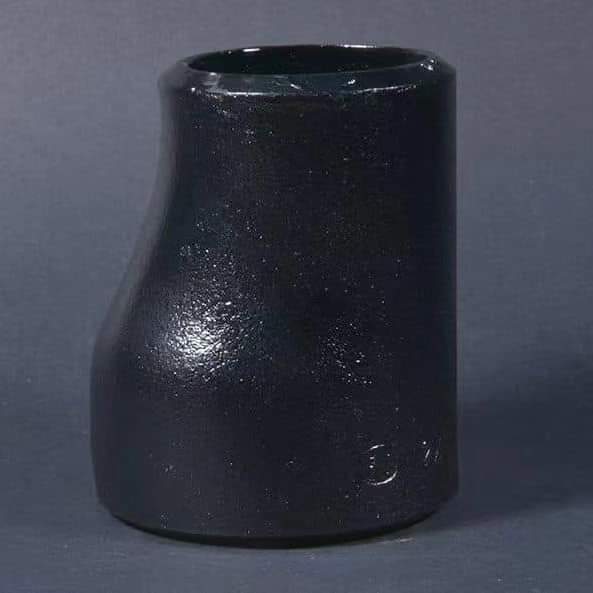

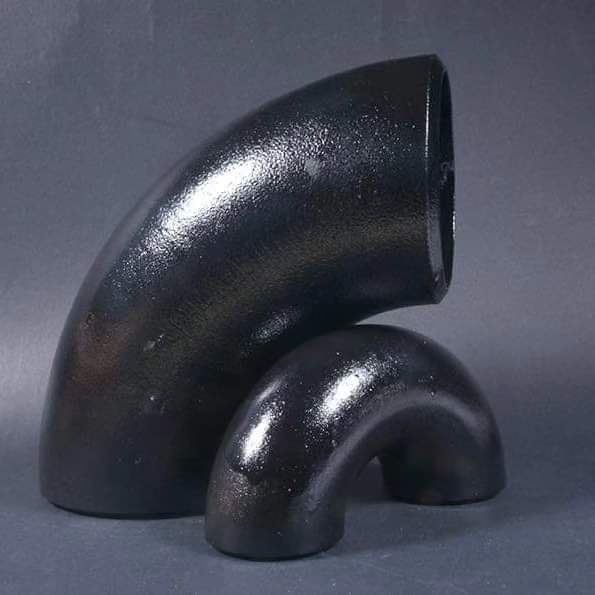

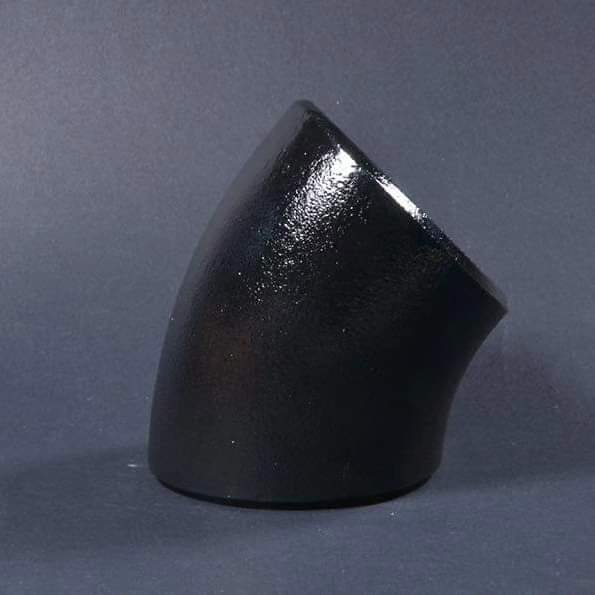

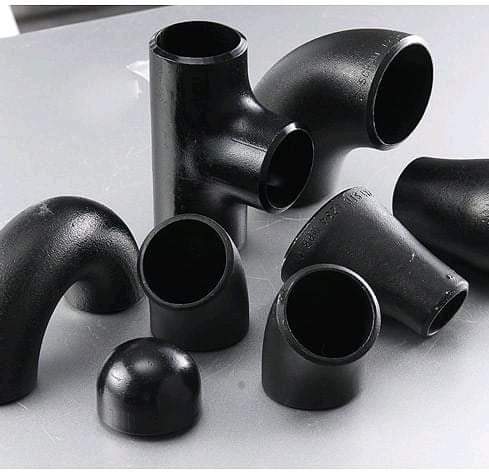

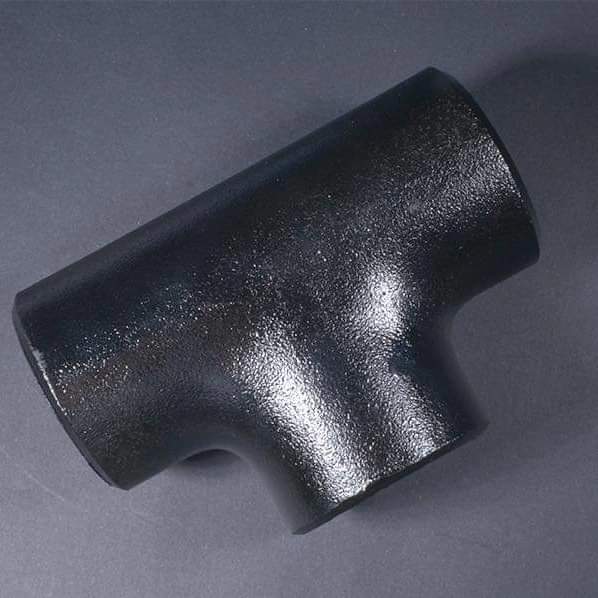

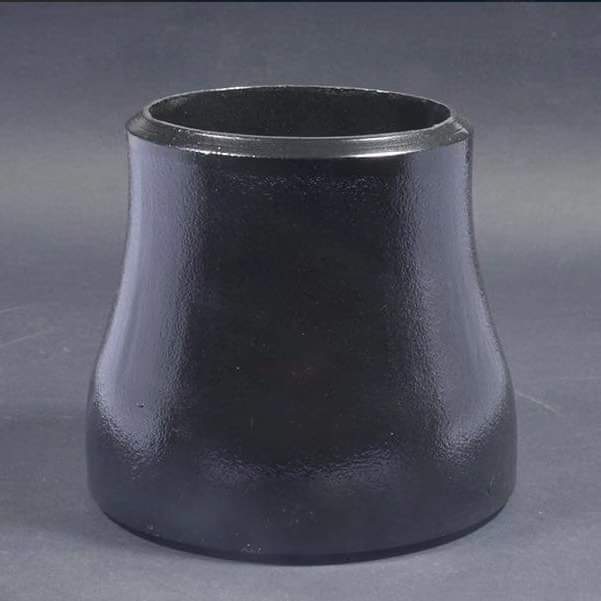

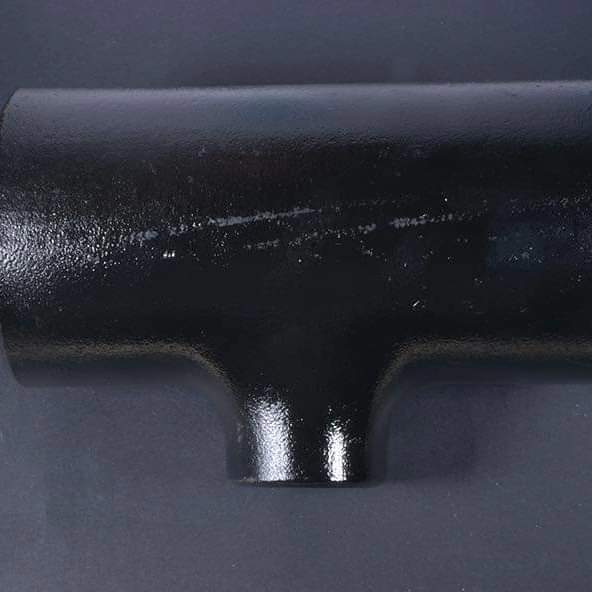

This is a comprehensive technical specification list for industrial buttweld and forged fittings. It covers the standard material grades, dimensions, and types used in high-pressure piping systems. Here is a clean, organized breakdown of your specifications for easy reference: ## Material Specifications * Stainless Steel * Standards: ASTM A312, A213, A249, A269, A358, A240, A276 * Grades: 202, 304/304L/304H, 316/316L/316Ti, 321/321H, 317/317L, 310/310S, 409, 410, 420, 430 * Carbon Steel * Standards: ASTM A106, A53, API 5L (Gr. A, B, C), ASTM A333 (Gr. 1 to 6) * Compliance: IBR and Non-IBR approved * Alloy Steel * Standards: ASTM A335 * Grades: P1, P2, P5, P9, P11, P22, P91 * Nickel & Exotic Alloys * Grades: Monel 400/500, Inconel 600/625, Incoloy 800/825, Hastelloy, 904L * Metals: Titanium, Tungsten, Silver Nickel, Zirconium, Palladium, Vanadium * Copper Alloys * Materials: Aluminium, Copper, Brass, Gunmetal * Fitting Standards * Standards: ASTM A403, A182, A234, A105, A420, A350 LF2 (IBR & Non-IBR) [1, 2, 3, 4, 5] ## Type and Design * Fitting Types: Elbows (45°, 90°, 180°), Tees (Equal & Equal/Reducing), Reducers (Concentric & Eccentric), Return Bends, Stub-Ends, Caps, Collars, Crosses, Inserts * Construction: Seamless and Welded [6, 7, 8, 9, 10] ## Dimensions and Tolerances * Size Range: 1/8“ NB to 48” NB * Wall Thickness: Schedule 5S to Schedule XXS (Extra Extra Strong) [11, 12, 13, 14] ------------------------------ To help you proceed, what is the primary goal for this data? If you are looking to buy or sell, sharing the required quantities and specific destinations will help me provide relevant sourcing options. [1] [https://www.icfitting.com/](https://www.icfitting.com//wp-content/uploads/2025/04/buttweld-pipe-fittings-sweepolet-lateral-tee-dimension-specifications.pdf) [2] [https://www.icfitting.com/](https://www.icfitting.com//product/stainless-steel-buttweld-fittings/) [3] [https://www.icfitting.com/](https://www.icfitting.com//product/pipes-tubes-casing/) [4] [https://www.icfitting.com/](https://www.icfitting.com//ibr-pipe-fittings-supplier-exporter.php) [5] [https://www.icfitting.com/](https://www.icfitting.com//buttweld-fittings.php) [6] [https://www.icfitting.com/](https://www.icfitting.com//products/fitting/) [7] [https://www.icfitting.com/](https://www.icfitting.com//browse/fittings/buttweld-fittings/) [8] [https://www.icfitting.com/](https://www.icfitting.com//product/buttweld-fittings/) [9] [https://www.icfitting.com/](https://www.icfitting.com//fittings/buttweld-fittings/) [10] [https://www.icfitting.com/](https://www.icfitting.com//eccentric-reducer-buttweld-pipe-fittings.php) [11] [https://www.icfitting.com/](https://www.icfitting.com//alloy-steel-buttweld-fittings.php) [12] [https://www.icfitting.com/](https://www.icfitting.com//buttweld-pipe-fittings.htm) [13] [https://www.icfitting.com/](https://www.icfitting.com//carbon-steel-pipe-fittings.html) [14] [https://www.icfitting.com/](https://www.icfitting.com//blog/my/)
