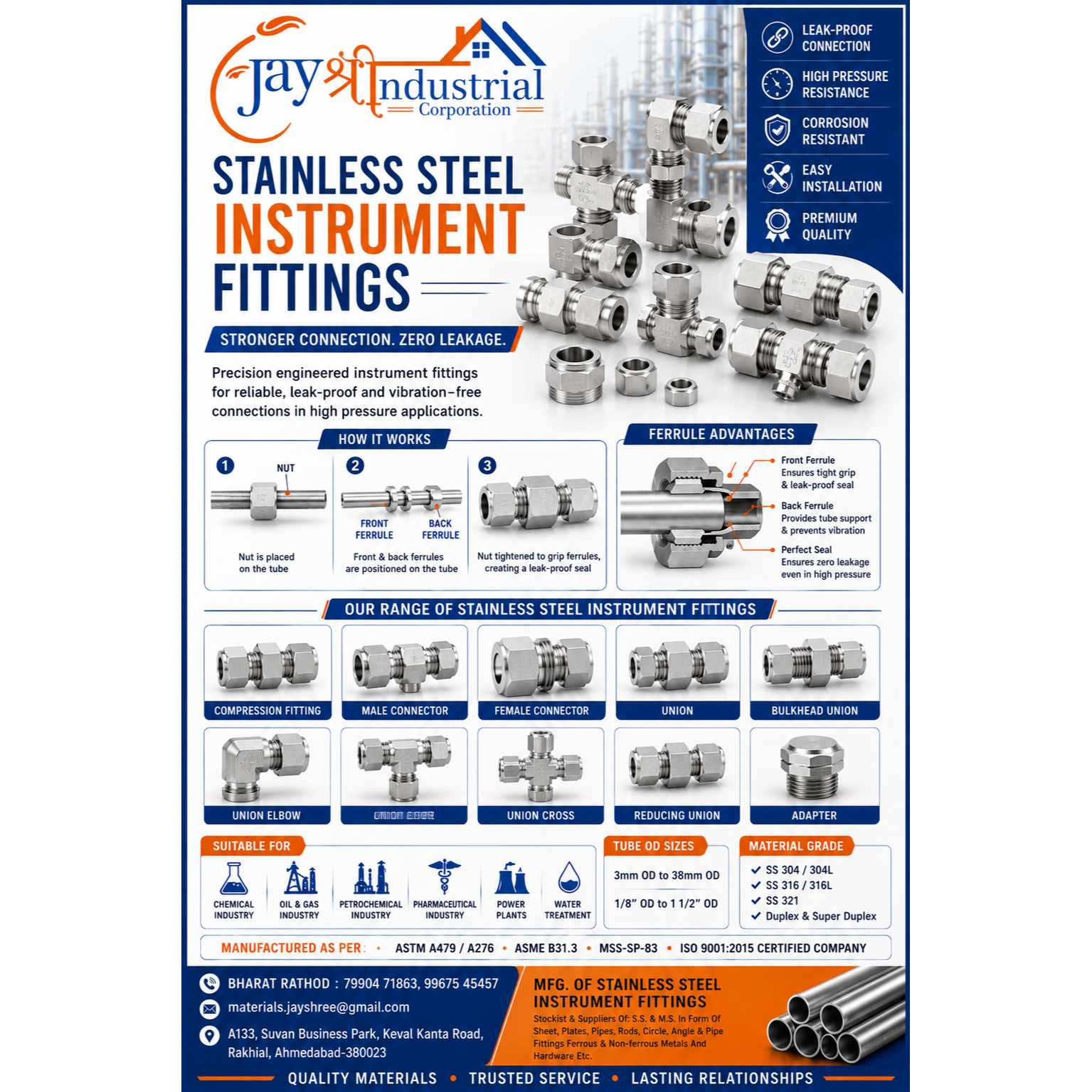

This third brochure highlights Stainless Steel Instrument Fittings, also known as compression or ferrule fittings, manufactured by Jayshree Industrial Corporation. These precision-engineered components are designed for zero-leakage, vibration-free performance in critical high-pressure applications. ## How Ferrule Fittings Work The system uses a highly reliable dual-ferrule mechanical grip mechanism: 1. Placement: A nut is slipped onto the tube line. 2. Positioning: A front ferrule and a back ferrule are positioned sequentially right behind the nut. 3. Tightening: As the nut is tightened, it compresses the two ferrules against the tube surface. * Front Ferrule: Provides a deep, tight grip and a reliable leak-proof seal. * Back Ferrule: Offers critical tube support and dampens vibrations to prevent the connection from loosening. ## Core Product Range The brochure details ten major configuration types: 1. Compression Fitting: The standard basic tube connector assembly. 2. Male Connector: Connects a compression tube line directly to a female threaded port. 3. Female Connector: Connects a compression tube line directly to a male threaded port. 4. Union: Joins two separate straight tubes of identical sizes together seamlessly. 5. Bulkhead Union: Secures a straight tube connection while passing through a panel wall or enclosure. 6. Union Elbow: Splices two tube lines together at a sharp 90-degree corner. 7. Union Tee: A three-way crossroad to split or combine fluid or gas lines. 8. Union Cross: A four-way junction block for more complex instrumentation distribution. 9. Reducing Union: Safely links two straight tubes of mismatched diameters. 10. Adapter: Converts a standard tube fitting port into an alternative line connection style. ## Technical Specifications * Available Sizes: Supports metric lines from 3mm OD to 38mm OD (Outside Diameter) and imperial lines from 1/8' OD to 1 1/2' OD. * Material Grades: Manufactured in premium alloys including SS 304 / 304L, SS 316 / 316L, SS 321, and Duplex & Super Duplex. * Manufacturing Standards: Built in compliance with international industrial codes including ASTM A479 / A276, ASME B31.3, MSS-SP-83, and ISO 9001:2015. ## Typical Use Industries Because they maintain a tight seal under constant pulse and vibration, these are preferred in: * Chemical and Petrochemical Processing * Oil & Gas Refineries * Pharmaceutical Production Lines * Power Generation Plants * Water Treatment Facilities Would you like to review the installation torque requirements to ensure zero-leakage, or do you need help cross-referencing these part numbers with your project design?
