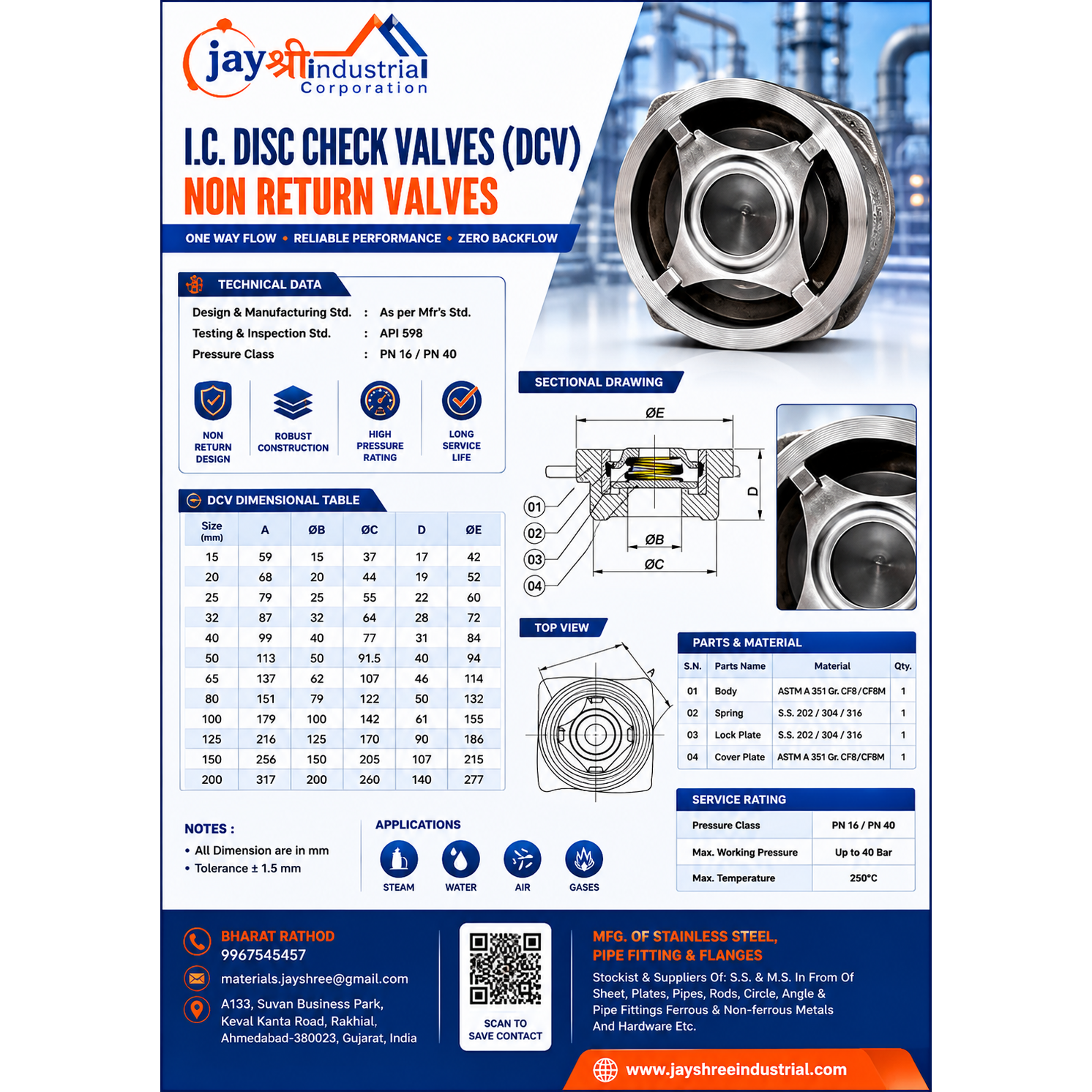

A stainless steel investment cast (I.C.) disc check valve (DCV) is a spring-loaded non-return valve. It features an SS 304 or SS 316 body, a wafer-style compact body, and a spring-assisted disc rated up to PN40 (42 bar) pressure to prevent fluid backflow and water hammer. Technical Specifications • Valve Type: Wafer-type spring-loaded disc check valve (non-return) • Size Range: 15 mm to 200 mm (1/2' to 8') • Body Material: Investment Casting (I.C.) Stainless Steel CF8 (SS 304) or CF8M (SS 316) • Trim & Disc: Stainless Steel (SS 304 / SS 316) with metal-to-metal seat • Spring Material: SS 304 / SS 316 / SS 202 • Pressure Rating: PN 40 / up to 42 Bar operational pressure • Design Standard: DIN EN 558-2 / Wafer pattern face-to-face • Media Suitability: Water, steam, air, gas, oil, and mild chemicals If you need help with a specific size or pressure rating, please tell me:What is the pipe size and media type?Do you need SS 304 or SS 316 grade material?
