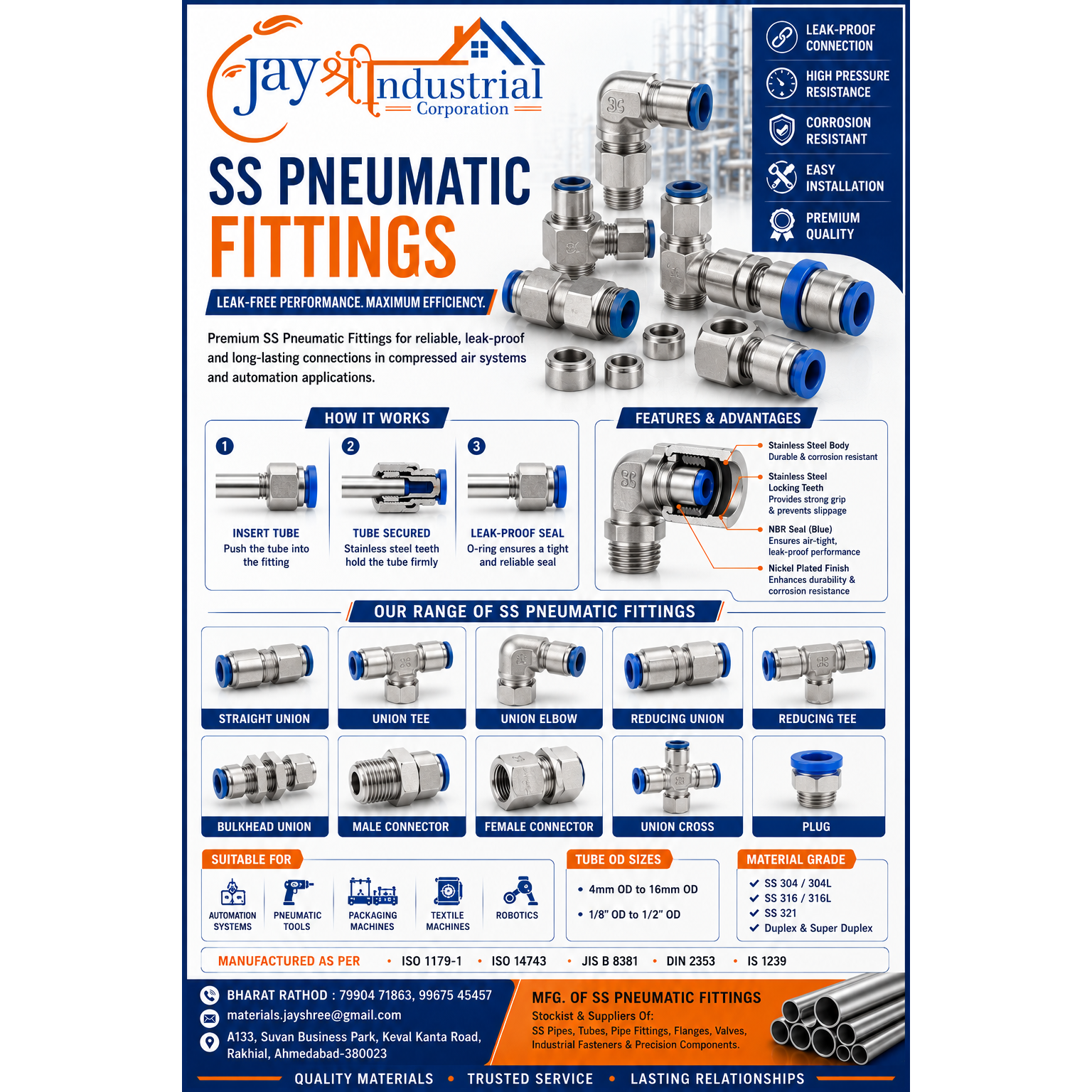

This fourth brochure focuses on SS Pneumatic Fittings, also known as push-to-connect or one-touch fittings, manufactured by Jayshree Industrial Corporation. These components are specifically designed for quick, tool-free assembly in compressed air systems and automation setups. ## How Push-to-Connect Fittings Work The connection mechanism is fully automatic and requires no tools: 1. Insert Tube: The pneumatic tubing is simply pushed straight into the fitting opening. 2. Tube Secured: Internal stainless steel locking teeth instantly bite down into the outer tube wall to hold it firmly in place under pressure. 3. Leak-Proof Seal: An internal rubber O-ring compresses around the tube circumference to establish an airtight seal. ## Core Product Features * Stainless Steel Body: Durable housing with excellent corrosion resistance. * Locking Teeth: Heavy-duty internal grip mechanics that prevent accidental tube slippage. * NBR Seal (Blue): High-grade Nitrile Butadiene Rubber compound ensures zero-leakage air performance. * Nickel Plated Finish: Enhances overall outer wear life and surface protection. ## Product Range The brochure showcases ten distinct pneumatic configurations: 1. Straight Union: Connects two pneumatic tubes of identical diameter inline. 2. Union Tee: Splits a single air line into two separate parallel streams. 3. Union Elbow: Redirects an air line at a sharp 90-degree angle. 4. Reducing Union: Connects a larger pneumatic tube inline to a smaller tube size. 5. Reducing Tee: A T-junction where the branching line uses a smaller tube size. 6. Bulkhead Union: Mounts through a control panel wall to bridge internal and external air lines. 7. Male Connector: Connects a push-to-connect line directly into a female threaded air port. 8. Female Connector: Connects a push-to-connect line directly over a male threaded air component. 9. Union Cross: A four-way manifold component for multi-line air distribution. 10. Plug: Inserts directly into an unused fitting port to securely block the airflow. ## Technical Specifications * Tube OD Sizes: Supports metric tubes from 4mm OD to 16mm OD and imperial lines from 1/8' OD to 1/2' OD. * Material Grades Available: Offered in premium alloys including SS 304 / 304L, SS 316 / 316L, SS 321, and Duplex & Super Duplex. * Manufacturing Standards: Produced in compliance with international engineering codes: ISO 1179-1, ISO 14743, JIS B 8381, DIN 2353, and IS 1239. ## Common Industry Applications Because they support rapid assembly and disassembly, these are widely used in: * Automation Systems & Robotics: Automated pick-and-place lines. * Pneumatic Tools: Handheld industrial air tools and assembly workshop stations. * Packaging & Textile Machines: Automated sorting, filling, and spinning machinery. Would you like to know which specific tubing materials (like Polyurethane vs. Nylon) work best with these fittings, or do you need help identifying the right thread type (BSPT, NPT, or Metric) for the male/female connectors?
