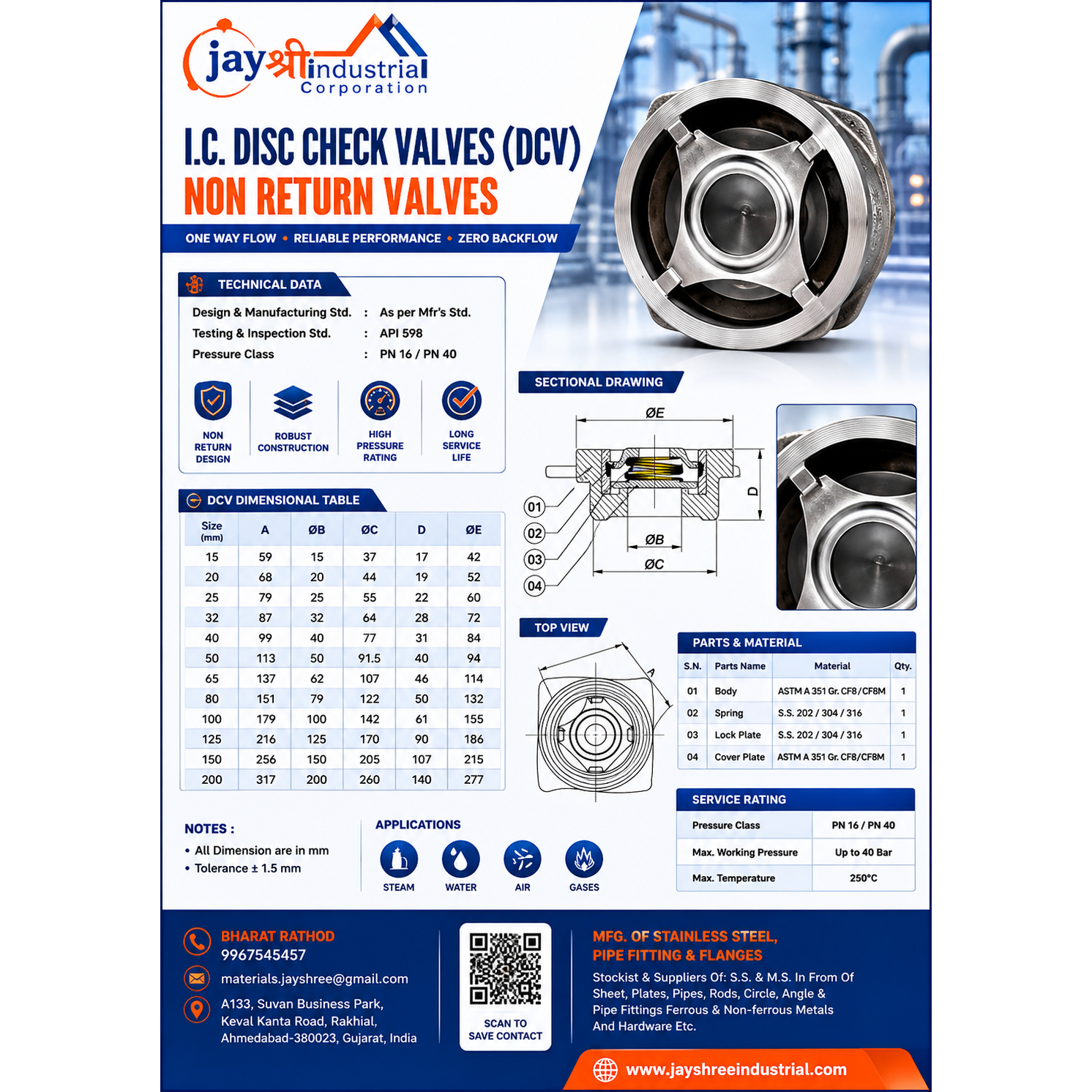

SS DCV (Stainless Steel Disc Check Valve / Non-Return Valve) features a compact wafer-style body with a spring-loaded centric disc that opens via fluid pressure and seals tightly under compression spring force to prevent backflow. Core Material & Design Specifications • Body Material: Stainless Steel (ASTM A351 CF8 / CF8M, SS 304, or SS 316) • Internal Trim/Disc: Stainless Steel (SS 304 / SS 316) or hardfaced options • Spring Material: SS 304 / SS 316 / Inconel • Seat Type: Metal-to-metal or soft-seated (PTFE, Viton, EPDM, Nitrile) • Design Standard: BS 7438 / EN 558-1 Operating & Sizing Parameters • Size Range: 15 NB to 200 NB (1/2' to 8' nominal pipe sizes) • Pressure Rating: PN 16, PN 40 (Up to 40–42 Bar / Class 150# to 300#) • Temperature Limits: Up to 220°C to 325°C depending on seat material choice • Mounting: Universal orientation; installs in horizontal or vertical pipelines (following flow direction arrows) If you need specifications for a specific brand (like Spirax Marshall or Caliber), a particular size, or a soft-seat compound, please let me know!
This is your website preview.
Currently it only shows your basic business info. Start adding relevant business details such as description, images and products or services to gain your customers attention by using Boost 360 android app / iOS App / web portal.
SS DCV (Stainless Steel Disc Check Valve / Non-Return Valve manufacturers in Mumbai
2026-08-13T12:26:27
SS DCV (Stainless Steel Disc Check Valve / Non-Return Valve) features a compact wafer-style body with a spring-loaded centric disc that opens via fluid pressure and seals tightly under compression spring force to prevent backflow. Core Material & Design Specifications • Body Material: Stainless Steel (ASTM A351 CF8 / CF8M, SS 304, or SS 316) • Internal Trim/Disc: Stainless Steel (SS 304 / SS 316) or hardfaced options • Spring Material: SS 304 / SS 316 / Inconel • Seat Type: Metal-to-metal or soft-seated (PTFE, Viton, EPDM, Nitrile) • Design Standard: BS 7438 / EN 558-1 Operating & Sizing Parameters • Size Range: 15 NB to 200 NB (1/2' to 8' nominal pipe sizes) • Pressure Rating: PN 16, PN 40 (Up to 40–42 Bar / Class 150# to 300#) • Temperature Limits: Up to 220°C to 325°C depending on seat material choice • Mounting: Universal orientation; installs in horizontal or vertical pipelines (following flow direction arrows) If you need specifications for a specific brand (like Spirax Marshall or Caliber), a particular size, or a soft-seat compound, please let me know!
