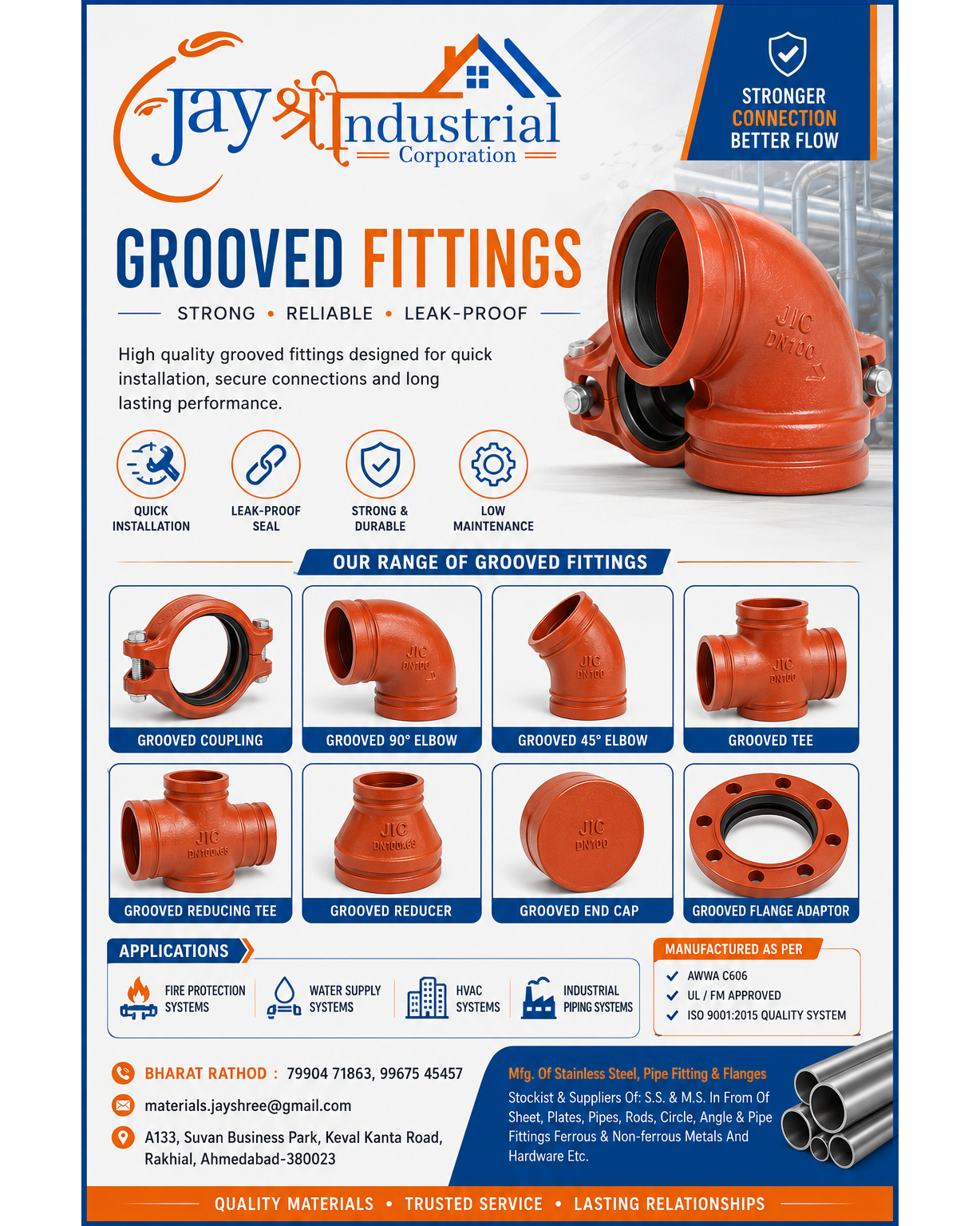

This seventh image is a product brochure from Jayshree Industrial Corporation focusing on their line of Grooved Fittings designed for rapid mechanical pipe assembly. ## 📐 Grooved Fittings Range The catalog displays 8 primary styles of grooved components: * Grooved Coupling: Standard two-bolt housing assembly with an internal rubber gasket. * Grooved 90° Elbow: Right-angle directional fitting. * Grooved 45° Elbow: Sharp angle directional fitting. * Grooved Tee: T-shaped branch connection. * Grooved Reducing Tee: Branch connection featuring a smaller outlet diameter. * Grooved Reducer: Concentric transition piece to join pipes of different diameters. * Grooved End Cap: Used to securely seal off dead ends in a grooved network. * Grooved Flange Adaptor: Transitions a standard flanged connection to a grooved pipeline layout. ## ⚙️ Manufacturing Standards The fittings are fabricated to meet stringent fire safety and mechanical compliance guidelines: * AWWA C606: Standard for grooved and shouldered joints. * UL / FM Approved: Certified for use in heavy-duty fire safety systems. * ISO 9001:2015: Quality Management System compliant. ## 🏭 Primary Applications * Fire Protection Systems: Pre-certified for automatic sprinkler grids. * Water Supply Systems: Municipal and industrial transmission. * HVAC Systems: Chilled water and condenser networks. * Industrial Piping Systems: Process fluid plumbing. If you are finalizing your mechanical system build, tell me if you want to verify the dimensions for a specific nominal pipe size (NPS), compare grooved vs. flanged installation costs, or check gasket material options for different chemicals.
