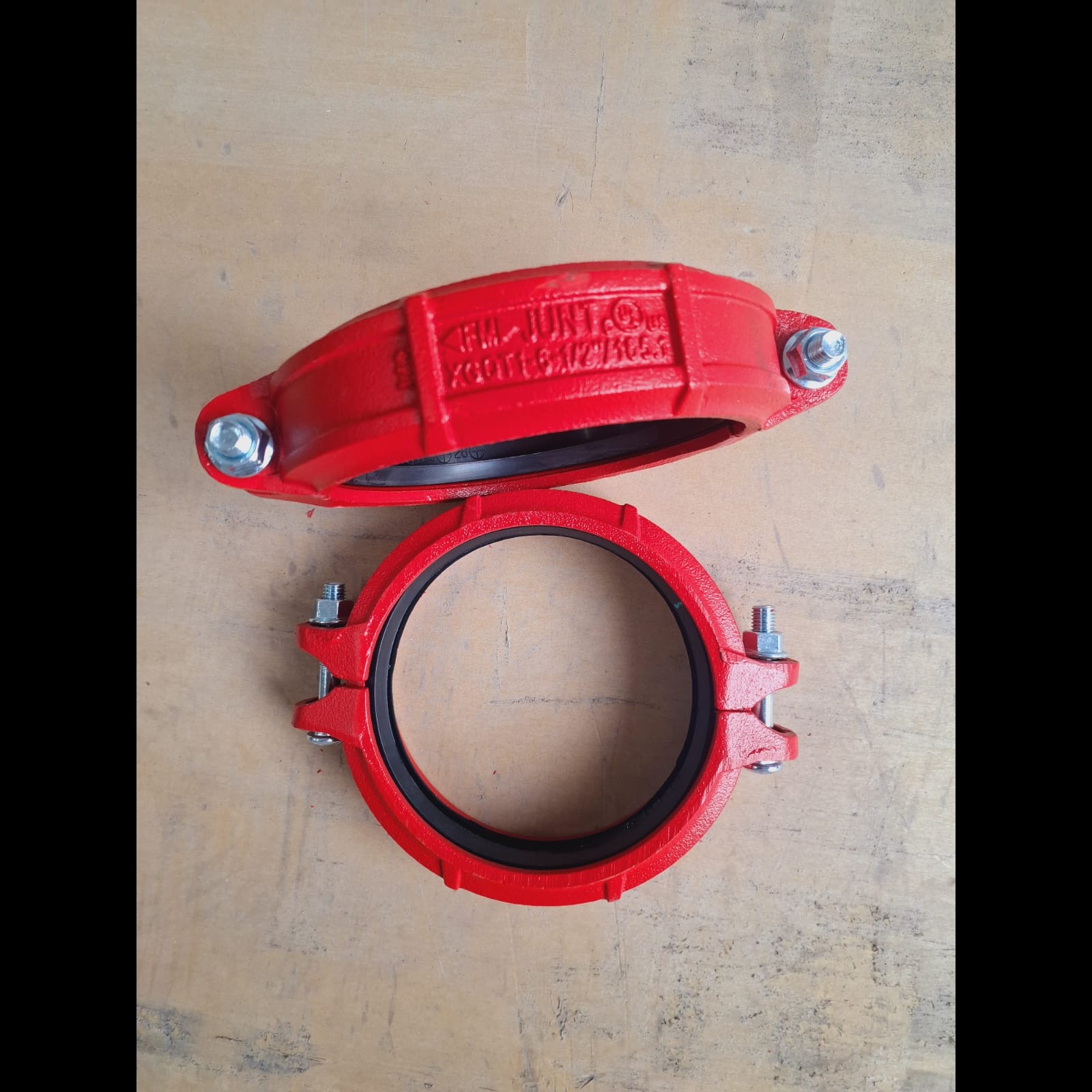

Ductile Iron (DI) grooved couplings are high-strength, mechanical pipe-joining components used for rapid assembly in fire protection, HVAC, and plumbing systems. Comprised of DI housings, a pressure-responsive gasket, and bolts, they create rigid or flexible joints by fitting into pipe grooves, rated for high pressures. Key Features and Description: Material: Made from ductile iron (often ASTM A536) for high tensile strength and durability. Components: Consists of two housing halves, a sealing gasket (typically EPDM), and nuts/bolts to secure the connection. Joining Method: Designed for use with rolled or cut-grooved pipe, eliminating the need for welding or threading. Types: Rigid Couplings: Maintain a strict, fixed connection that prevents bending or rotation, ideal for straight pipe runs. Flexible Couplings: Allow for controlled movement, handling expansion, contraction, vibration, and angular deflection. Applications: Widely used in fire fighting systems, HVAC systems, and water supply piping. Surface Treatment: Generally feature a red epoxy paint (RAL 3000) for corrosion resistance, with hot-dipped galvanizing as an option. Standards:
This is your website preview.
Currently it only shows your basic business info. Start adding relevant business details such as description, images and products or services to gain your customers attention by using Boost 360 android app / iOS App / web portal.
Ductile Iron (DI) grooved couplings
2026-04-08T06:59:24
Ductile Iron (DI) grooved couplings are high-strength, mechanical pipe-joining components used for rapid assembly in fire protection, HVAC, and plumbing systems. Comprised of DI housings, a pressure-responsive gasket, and bolts, they create rigid or flexible joints by fitting into pipe grooves, rated for high pressures. Key Features and Description: Material: Made from ductile iron (often ASTM A536) for high tensile strength and durability. Components: Consists of two housing halves, a sealing gasket (typically EPDM), and nuts/bolts to secure the connection. Joining Method: Designed for use with rolled or cut-grooved pipe, eliminating the need for welding or threading. Types: Rigid Couplings: Maintain a strict, fixed connection that prevents bending or rotation, ideal for straight pipe runs. Flexible Couplings: Allow for controlled movement, handling expansion, contraction, vibration, and angular deflection. Applications: Widely used in fire fighting systems, HVAC systems, and water supply piping. Surface Treatment: Generally feature a red epoxy paint (RAL 3000) for corrosion resistance, with hot-dipped galvanizing as an option. Standards:
2026-04-08T06:59:24
 grooved couplings are )
