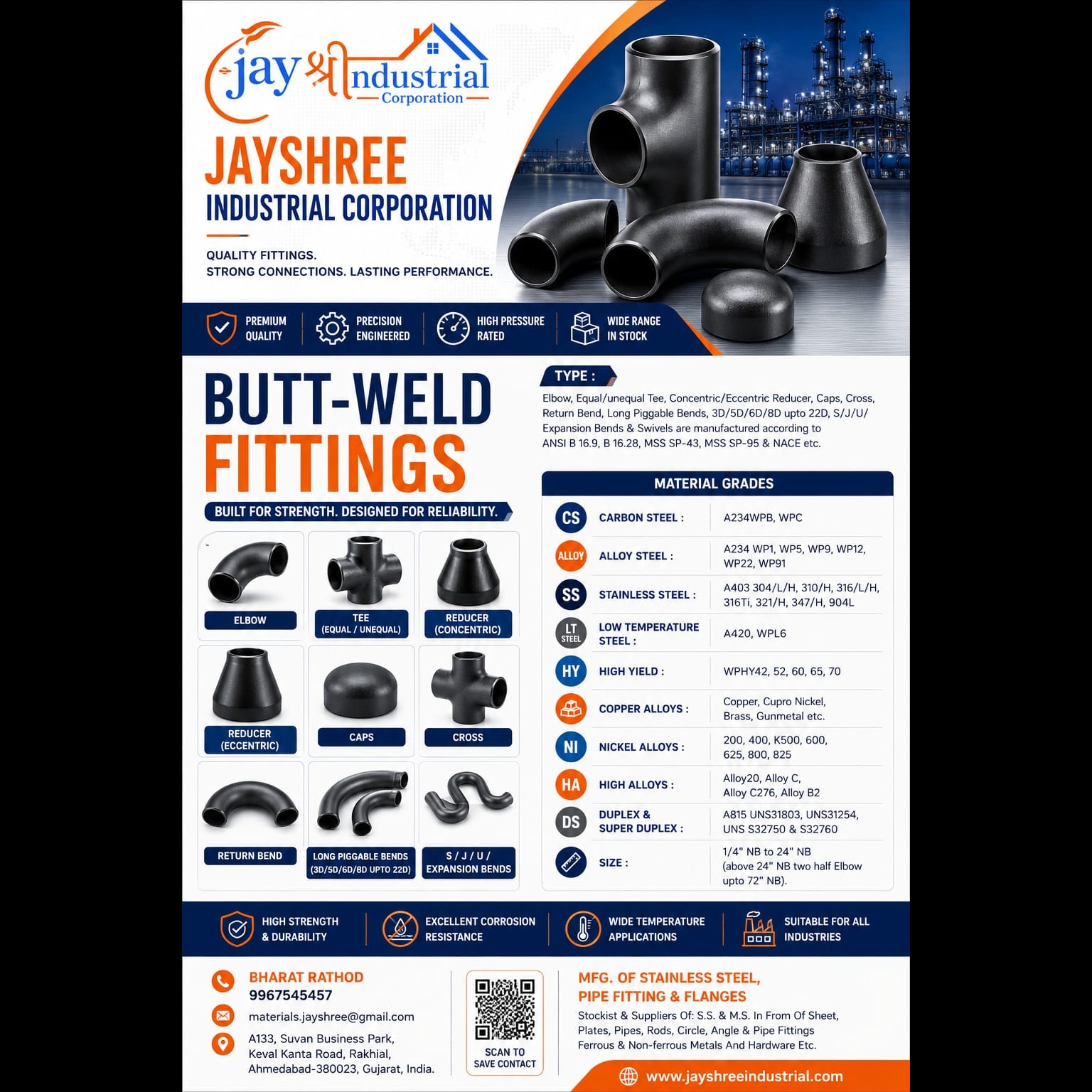

This second brochure focuses on Butt-Weld Fittings manufactured by Jayshree Industrial Corporation. Unlike the previous threaded cast iron fittings, these are designed to be permanently welded into piping systems for robust, leak-proof connections. ## Material Grades & Specifications The brochure highlights a comprehensive range of materials suitable for diverse temperature, pressure, and chemical environments: * Carbon Steel (CS): Grades A234WPB, WPC. * Alloy Steel: Grades A234 WP1, WP5, WP9, WP12, WP22, WP91. * Stainless Steel (SS): Grades A403 304/L/H, 310/H, 316/L/H, 316Ti, 321/H, 347/H, 904L. * Low Temperature Steel (LT): Grades A420, WPL6. * High Yield (HY): Grades WPHY42, 52, 60, 65, 70. * Specialty Alloys: Copper Alloys, Nickel Alloys, High Alloys, and Duplex & Super Duplex steel. * Manufacturing Standards: Made according to international standards like ANSI B 16.9, B 16.28, MSS SP-43, MSS SP-95, and NACE. * Size Range: Standard sizes from 1/4' NB to 24' NB (Nominal Bore), and above 24' NB for half-elbow configurations up to 72' NB. ## Product Range The brochure showcases nine distinct butt-weld configurations: 1. Elbow: Alters fluid flow direction at various angles. 2. Tee (Equal / Unequal): Connects three pipes together; equal branches keep the same size, while unequal branches reduce diameter. 3. Reducer (Concentric): Merges a larger pipe into a smaller one along a centered midline axis. 4. Reducer (Eccentric): Changes pipe size while maintaining one flat side, preventing air pockets or pooling. 5. Caps: Welded onto the bare end of a pipe to seal off flow entirely. 6. Cross: A four-way connection allowing multiple distribution lines. 7. Return Bend: A 180-degree bend used commonly in heating coils and heat exchangers. 8. Long Piggable Bends: Extended sweeping bends (3D/5D/6D/8D up to 22D) that allow clean-out 'pigs' to pass through the line smoothly. 9. S / J / U / Expansion Bends: Custom configured loops designed to safely absorb thermal contraction and expansion in long pipe runs. Would you like to explore which material grade is best suited for your specific fluid type, or do you need help deciding between concentric and eccentric reducers?
